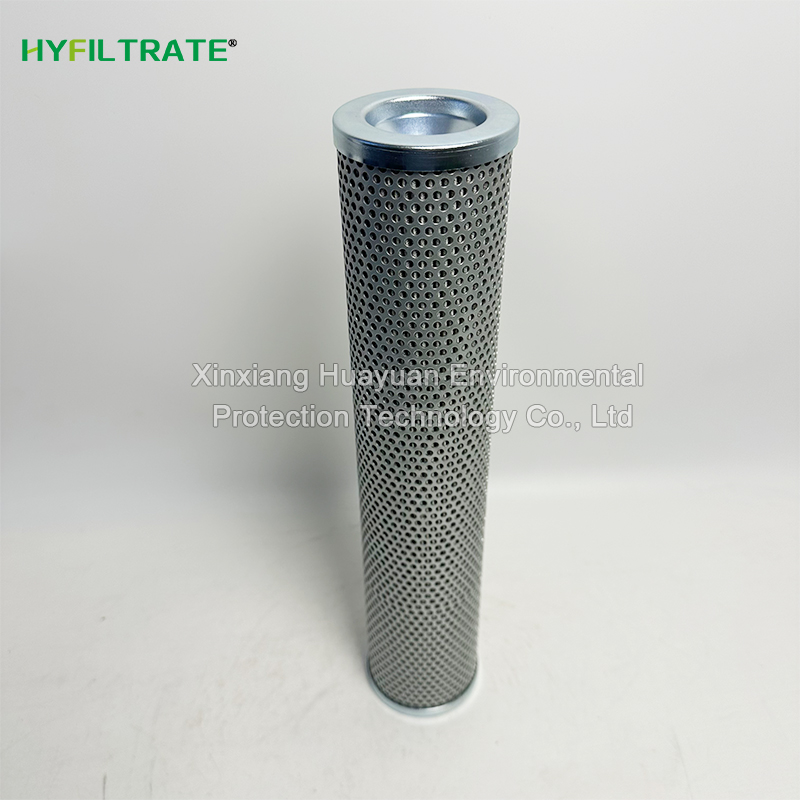

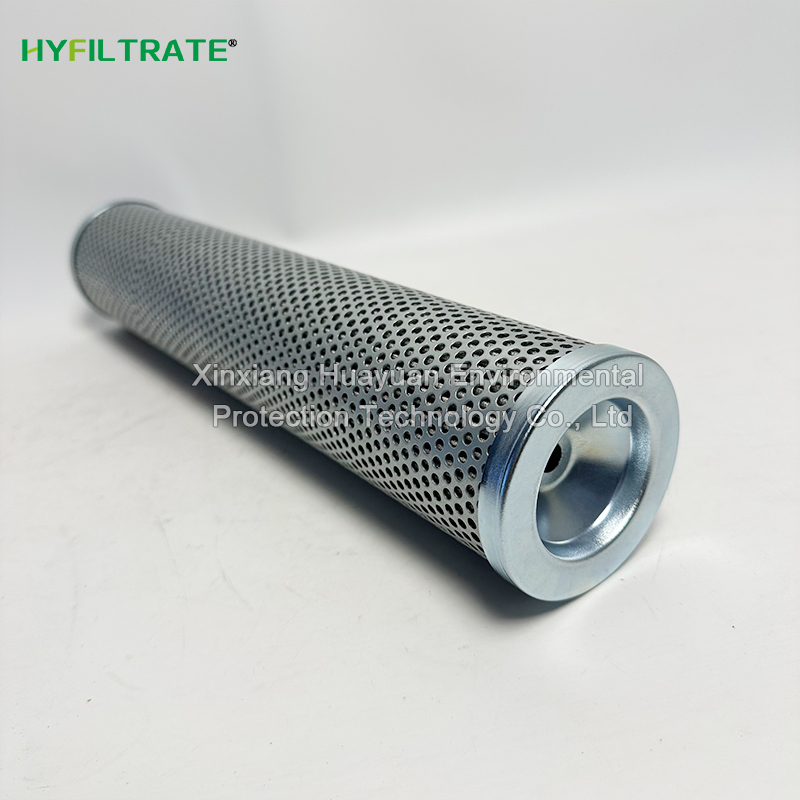

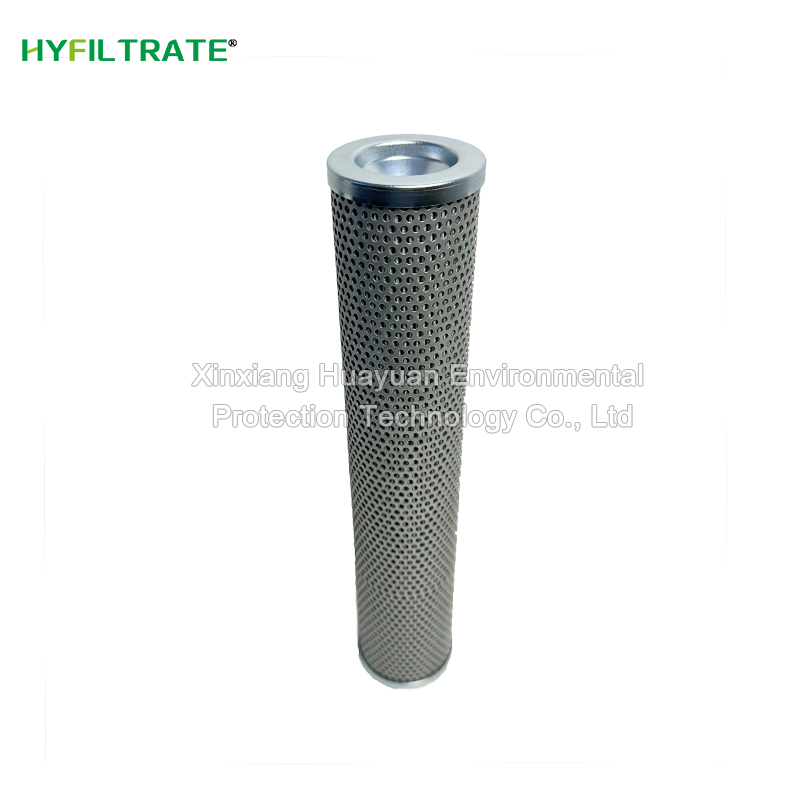

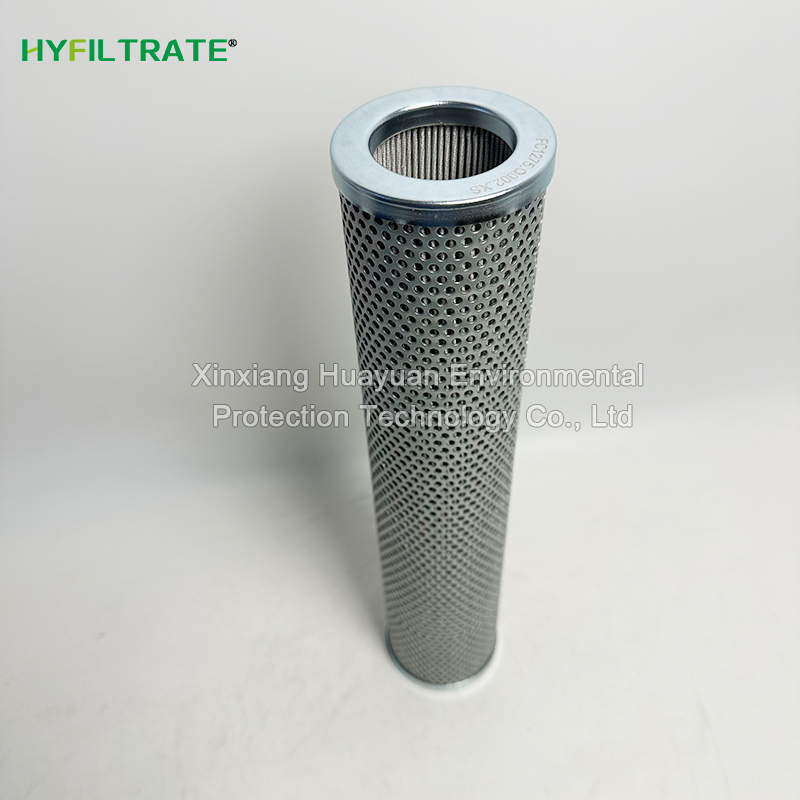

Replace Parker FC1275. Q002. XS hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

The replacement Parker FC1275. Q002. XS Hydraulic oil filter element has high-precision interception capability, which can capture small solid particles, continuously control the cleanliness of the medium, and suppress surface abrasive wear of precision components. The inner lining protective structure reduces the direct impact between the filter material and the fluid, improving long-term working stability. Uniform wrinkled layout evenly distributes fluid load and stably controls the pressure difference during normal operation. The end cap is tightly sealed and bonded, reducing the risk of unfiltered media bypass. Its compact appearance is suitable for limited installation space in oil tanks and is suitable for circulation systems with strict requirements for oil cleanliness levels.

Applicable locations:

Precision hydraulic test bench: servo control system medium high-precision purification unit

Wind power transmission system: gearbox lubricating oil, yaw hydraulic circuit filtering device

Precision CNC machine tool: servo hydraulic oil supply system return oil filtration unit

Rubber precision molding equipment: injection servo oil circuit medium protection device

Small servo hydraulic stations and robot hydraulic drive systems in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): FC1275. Q005. XS, FC1275. Q010. XS

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: TZX2-350 × 2, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Regularly monitor changes in pressure differential and promptly identify internal sources of pollution in the system.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

FC1275.Q002.XS、FC1275.Q005.XS、FC1275.Q010.XS、FC1275.Q016.XS、FC1275.Q020.XS

FC1230.Q002.XS、FC1320.Q002.XS、FC1275.Q002.BS、FC1275.Q002.XV、FC1275.Q002.S

FC1275.Q002.XA、FC1275.Q003.XS、FC1275.Q002.LP、FC1275.Q002.XSP、FC1275.Q002.VS

Technical data

Replace Parker FC1275. Q002. XS hydraulic oil filter element、

Product type: Hydraulic system low-pressure return oil ultra precision filter element

Filter material configuration: multi-layer high-density asymmetric gradient glass fiber medium, fluid flow direction from outside to inside

Filtering accuracy: 2 μ m, capturing submicron wear powder, gelatinous flocs, and fine hard particles

Allowable maximum pressure difference: 8 bar, suitable for small pressure fluctuations in reflux conditions

Sealing material: NBR nitrile rubber sealing ring, compatible with various hydraulic transmission media

Working temperature range: -28 ℃ to+106 ℃

Supporting structure: Porous nylon lining mesh paired with perforated steel casing to constrain the wrinkling and displacement of the filter material

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
