The replacement Parker FTCE2A100Q Hydraulic oil filter element has sufficient dirt holding capacity, continuously adsorbing oil sludge and metal wear particles, and stably maintaining the cleanliness standard of the oil tank fluid. The dense folded layout expands the effective filtering area and reduces pressure loss during normal operation. Double layered metal casing strengthens the filter layer, reducing the risk of damage caused by oil return impact. The end face seal fits tightly, reducing the probability of medium bypass. Suitable for long-term uninterrupted operation of equipment, effectively protecting the main pump and various hydraulic actuators, reducing the frequency of abnormal shutdown maintenance.

Applicable locations:

Construction machinery industry: hydraulic return oil purification unit for large loaders and excavation equipment

Metallurgical equipment: rolling mill, shearing equipment, hydraulic oil tank, return oil filtration device

Energy Equipment: Hydraulic Lubrication System for Generator Sets

Intelligent Manufacturing: Purification of Oil Lines in Large Hydraulic Stations and Die Casting Production Lines

Other scenes: Port machinery, mobile heavy equipment, fuel tank filtration system

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): FTCE2A05Q, FTCE2A20Q

Tip: There are differences in filtering accuracy and cannot be interchanged arbitrarily.

2) Alternative model: PKFTCE210Q, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and interface size must match; Fiberglass filter material cannot be washed and regenerated; Promptly investigate external sources of pollution when there is an abnormal increase in pressure difference.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

FTCE2A10Q、FTCE2A05Q、FTCE2A20Q、FTCE2A03Q、FTCE2A16Q

FTCE1A10Q、FTCE3A10Q、FTCE2B10Q、FTCE2B05Q、FTCE2B20Q

FTBE2A10Q、FTAE2A10Q、FTCE4A10Q、FTCE2A25Q、FTCE2A40Q

Technical data

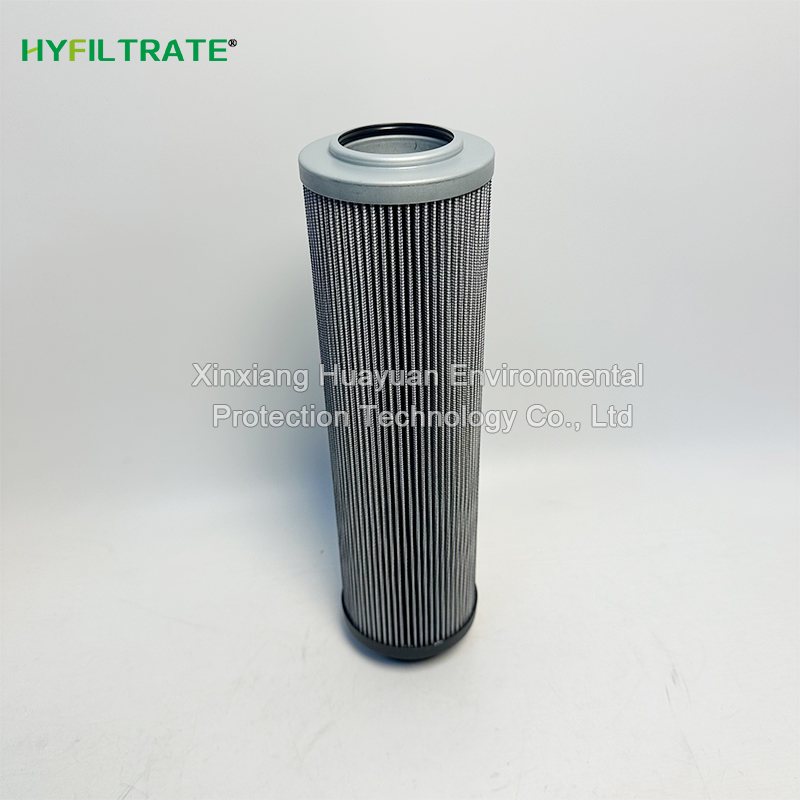

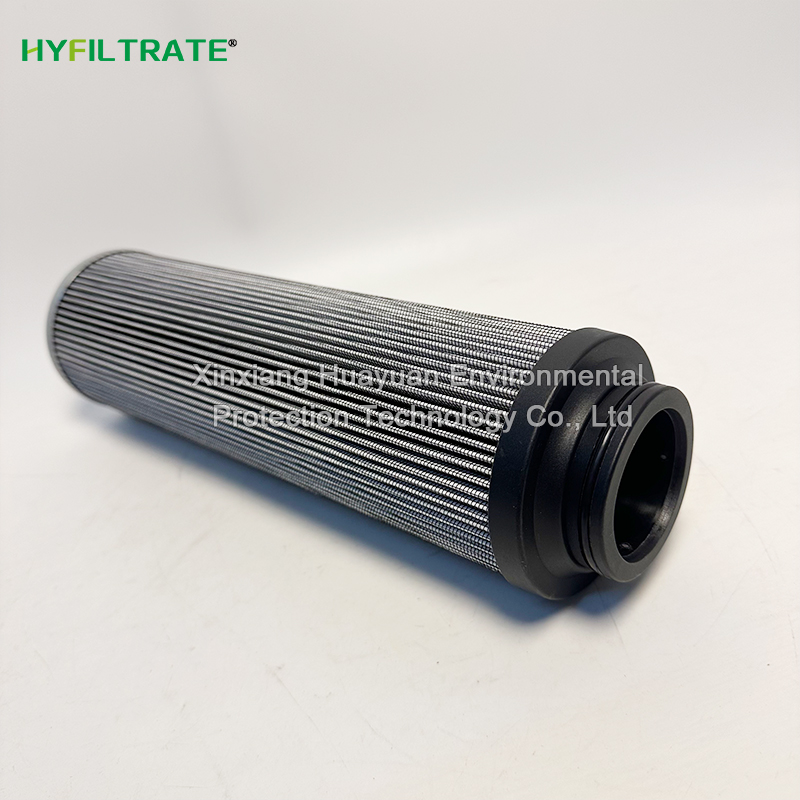

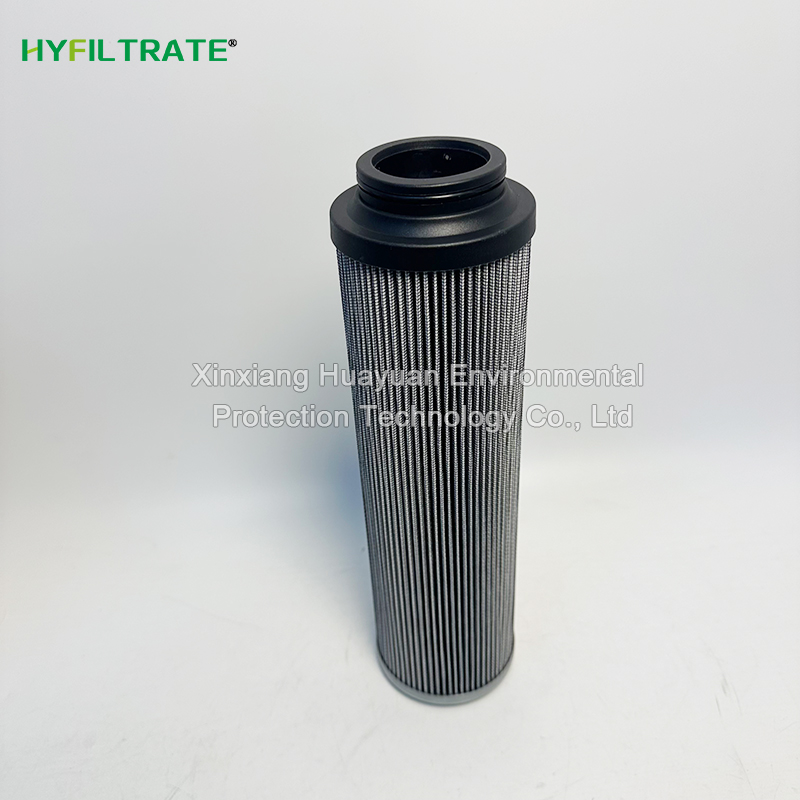

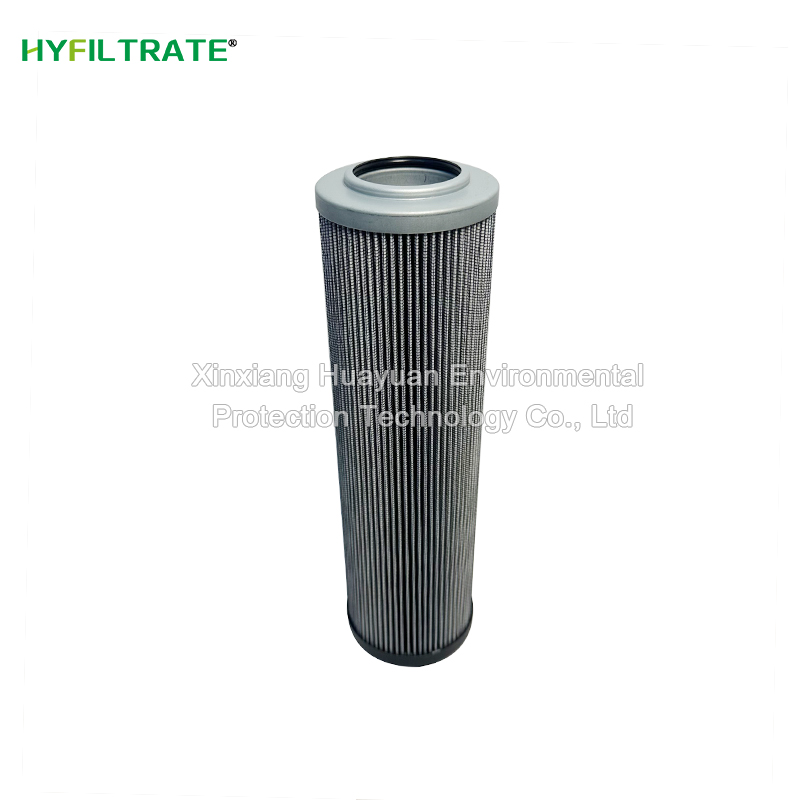

Replace Parker FTCE2A100Q hydraulic oil filter element

Product type: Hydraulic system oil tank top mounted fiberglass filter element

Filter material configuration: multi-layer gradient glass fiber deep filtration medium, fluid flow direction from outside to inside

Filtering accuracy: 10 μ m, capturing component wear debris, oil sludge, and small hard solid impurities

Allowable maximum pressure difference: 21 bar, capable of withstanding continuous alternating pressure impact in the circuit

Sealing material: NBR nitrile rubber sealing ring, compatible with various hydraulic transmission media

Working temperature range: -30 ℃ to+107 ℃

Supporting structure: Galvanized steel punched inner and outer sleeves, resistant to continuous flushing by liquid flow

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
