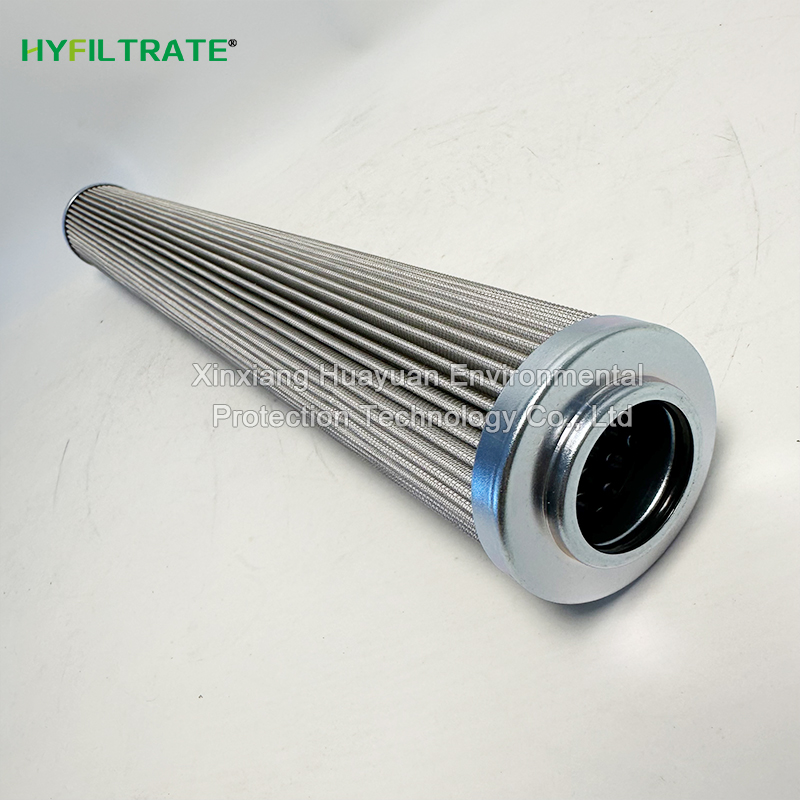

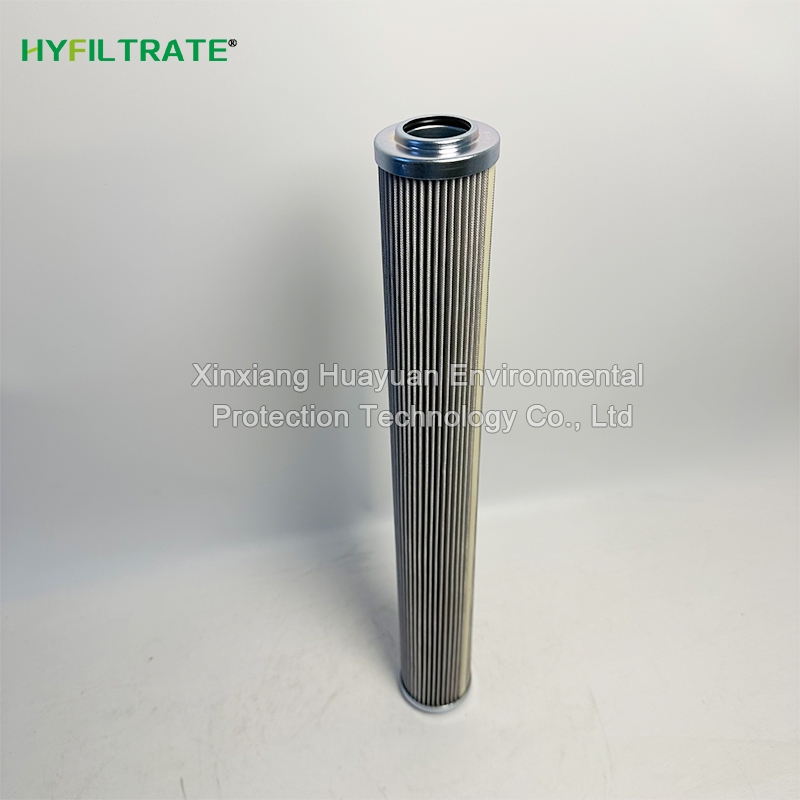

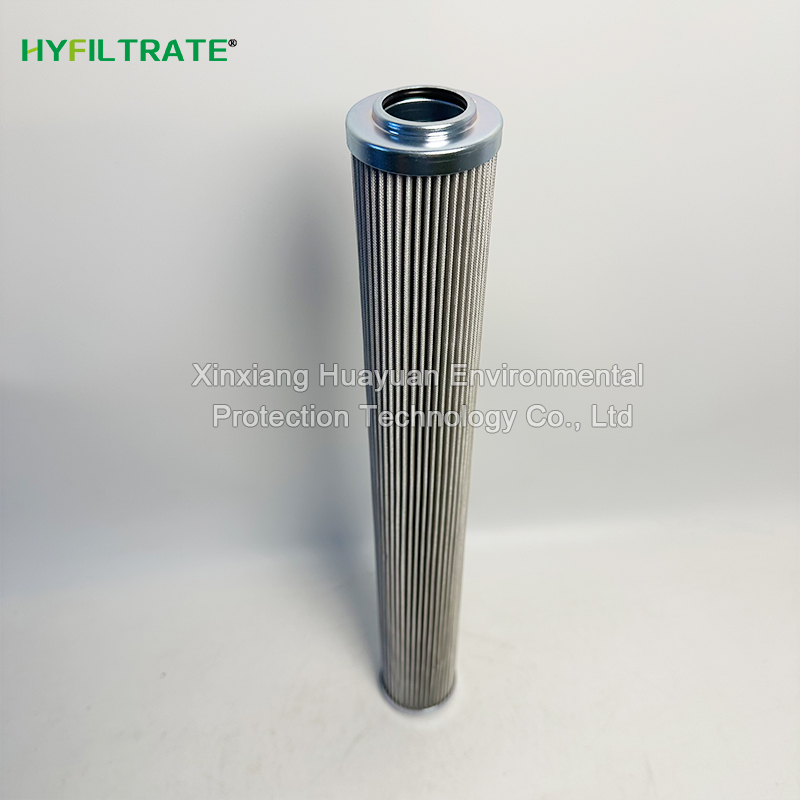

Replace MAHLE PI 22015 RN SMX 6 hydraulic oil filter element

The replacement of MAHLE PI 22015 RN SMX 6 Hydraulic oil filter element can gradually intercept pollutants of different particle sizes, with stable pollutant holding capacity, effectively protecting low-pressure circuit control valves from particle wear. The dense wrinkled layout enhances the effective filtering area and maintains a lower normal operating pressure difference. The metal support cylinder enhances the deformation resistance of the filter layer and avoids damage to the filter material caused by pressure fluctuations. The sealing structure is firmly bonded, reducing the phenomenon of medium bypass. The compact structure is easy to install in narrow spaces and suitable for long-term continuous circulation filtration of various industrial equipment.

Applicable locations:

Machine tool hydraulic system: CNC equipment, hydraulic grinder low-pressure oil purification unit

Light engineering machinery: hydraulic circuit filtration device for small excavation and loading equipment

Lubrication oil supply station: precision filtration of gearbox, bearing circulation lubrication oil circuit

Rubber and plastic auxiliary equipment: medium protection unit for small injection molding and hydraulic forming machines

Small hydraulic power units and hydraulic test benches with low-pressure filtration in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): PI 22015 RN SMX 3, PI 22015 RN SMX 10

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: HX240 × 6BN/HC, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Regularly monitor changes in pressure differential and promptly identify internal sources of pollution in the system.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

PI 22015 RN SMX 6、PI 22015 RN SMX 3、PI 22015 RN SMX 10、PI 22015 RN SMX 25、PI 22010 RN SMX 6

PI 22025 RN SMX 6、PI 21015 RN SMX 6、PI 23015 RN SMX 6、PI 22015 RN MIC 10、PI 22015 RN DRG 25

PI 22015 RN SMXVST6、PI 22015 DN SMX 6、PI 22015 RN SMX 6 NBR、PI 22015 RN SMX 6 V、PI 22015 RN PS 6
