Replace Parker 936708Q hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing the Parker 936708Q Hydraulic oil filter element can reduce its own weight, and the gradient arrangement of the medium layer can intercept pollutants step by step, with stable pollutant holding capacity and effective protection of various precision control components. Uniform folded layout fully expands the circulation area and stably controls the pressure difference during normal operation. Fluororubber seals can withstand a wider temperature range and reduce the risk of leakage in high-temperature conditions. The overall structure is simplified, reducing the pressure of waste disposal and ensuring long-term stable maintenance of medium cleanliness standards, making it suitable for uninterrupted and continuous operation of production lines.

Applicable locations:

Metallurgical rolling equipment: plate extrusion, continuous casting and rolling oil medium purification unit

Engineering machinery equipment: tunnel excavation, hydraulic pipeline protection device for heavy-duty vehicles

Energy supporting unit: wind power hydraulic drive system precision filtration unit

Rubber molding machinery: pressure circuit purification for large-scale injection molding and extrusion production lines

Large hydraulic power stations and port lifting equipment oil circuit protection in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): 936706Q, 936710Q

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: HX270 × 10BN/HC, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Continuously monitor changes in pressure differential and promptly identify internal sources of pollution in the system.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

936708Q、936706Q、936710Q、936704Q、936712Q

936608Q、936808Q、936708V、936708B、936708S

936708QP、936709Q、936703Q、936708A、936715Q

Technical data

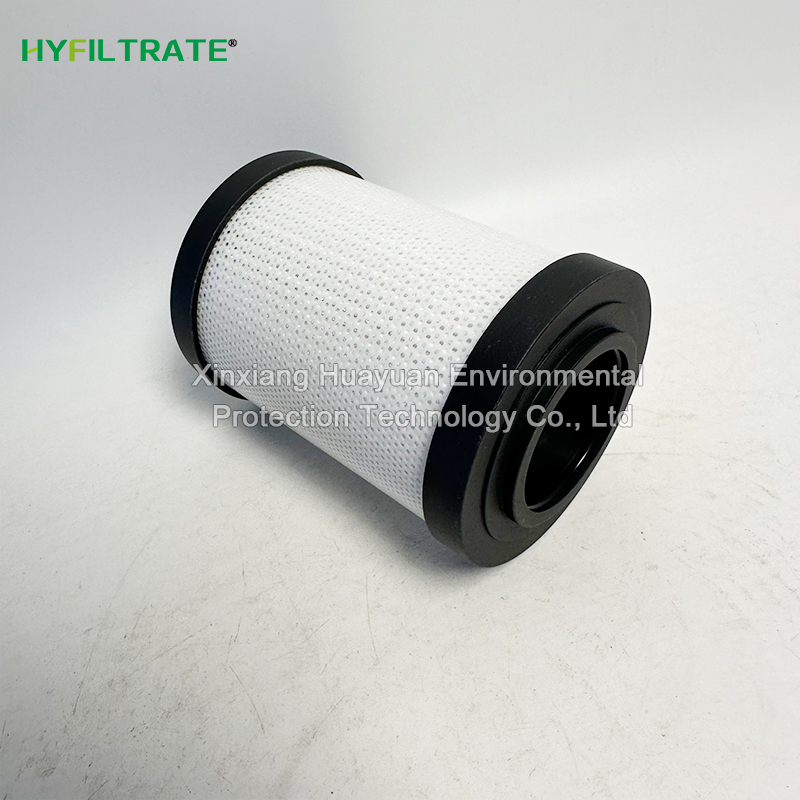

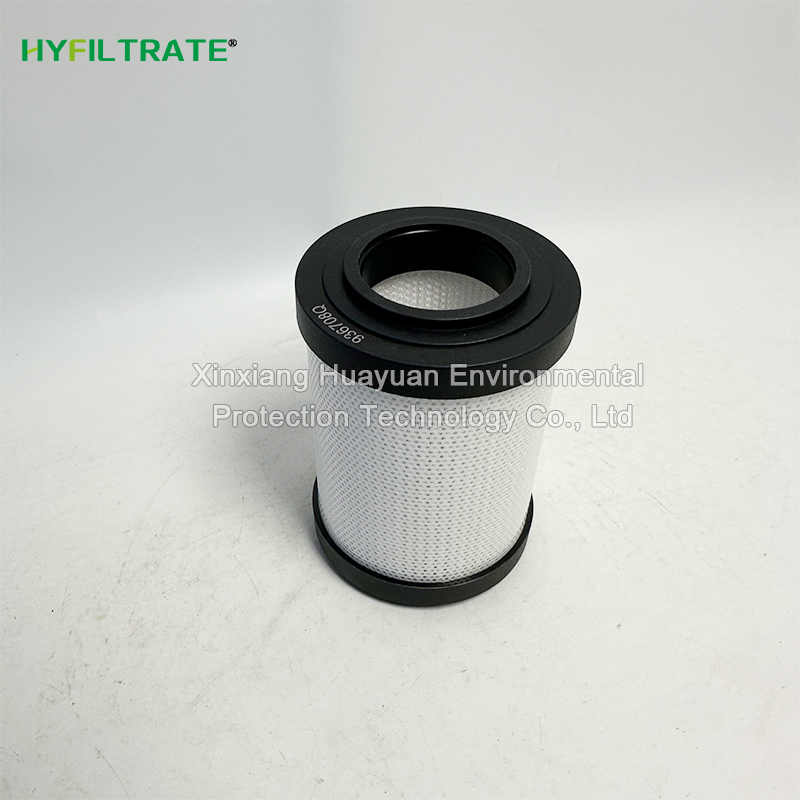

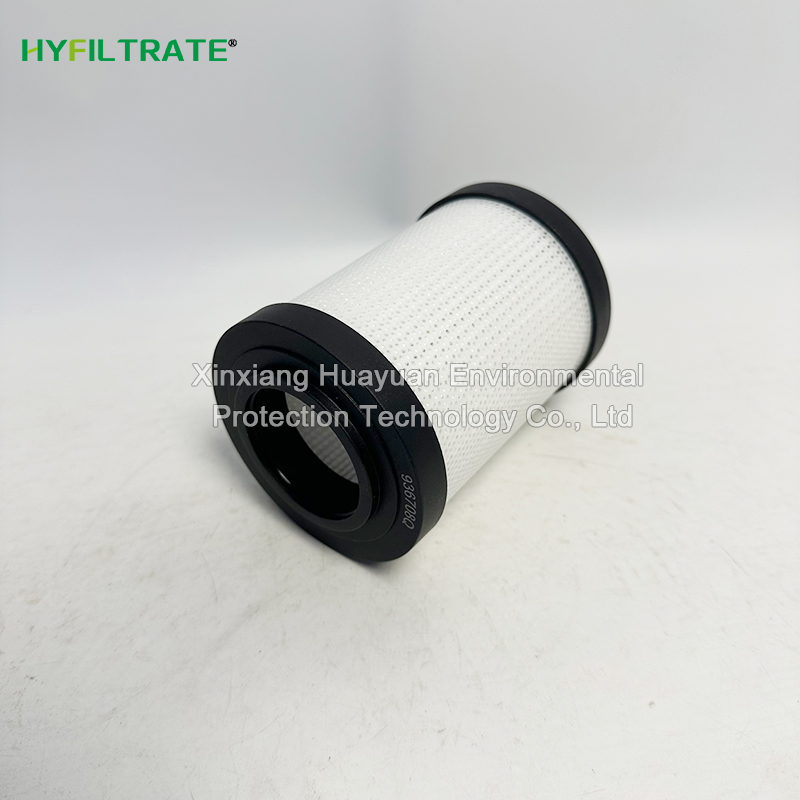

Replace Parker 936708Q hydraulic oil filter element

Product type: Hydraulic system medium pressure pipeline fiberglass precision filter cartridge

Filter material configuration: multi-layer asymmetric gradient glass fiber medium, fluid flow direction from outside to inside

Filtering accuracy: 10 μ m, capturing wear particles, gel precipitates, and fine hard solid impurities

Allowable maximum pressure difference: 10.5 bar, withstand periodic pressure pulsation of the system

Sealing material: Fluororubber sealing ring, compatible with mineral oil and various synthetic hydraulic media

Working temperature range: -35 ℃ to+107 ℃

Supporting structure: No built-in metal inner skeleton, relying on filter material wrinkles and end caps to form a self-supporting structure

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
