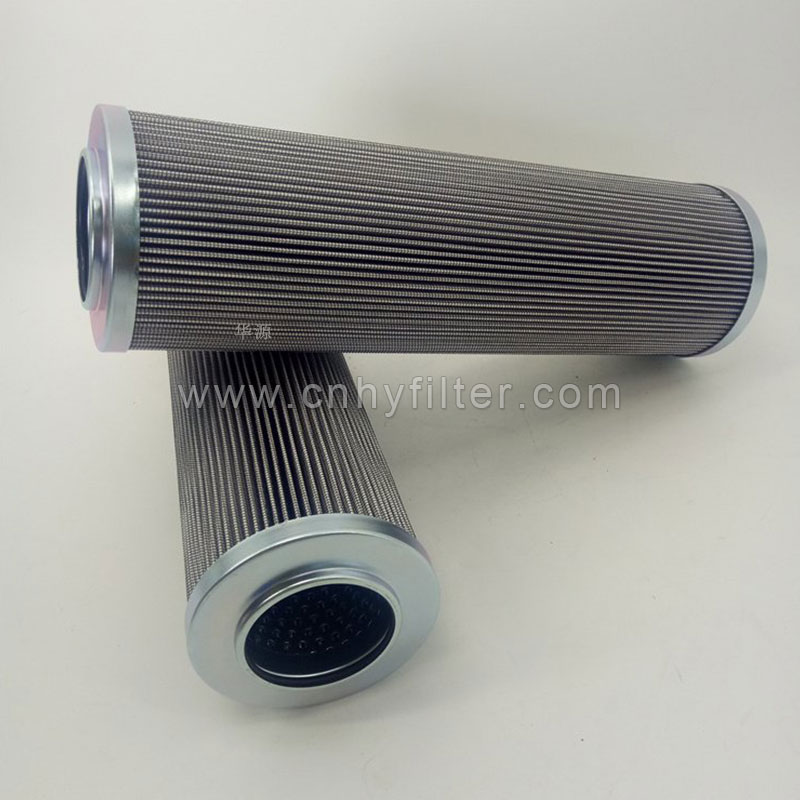

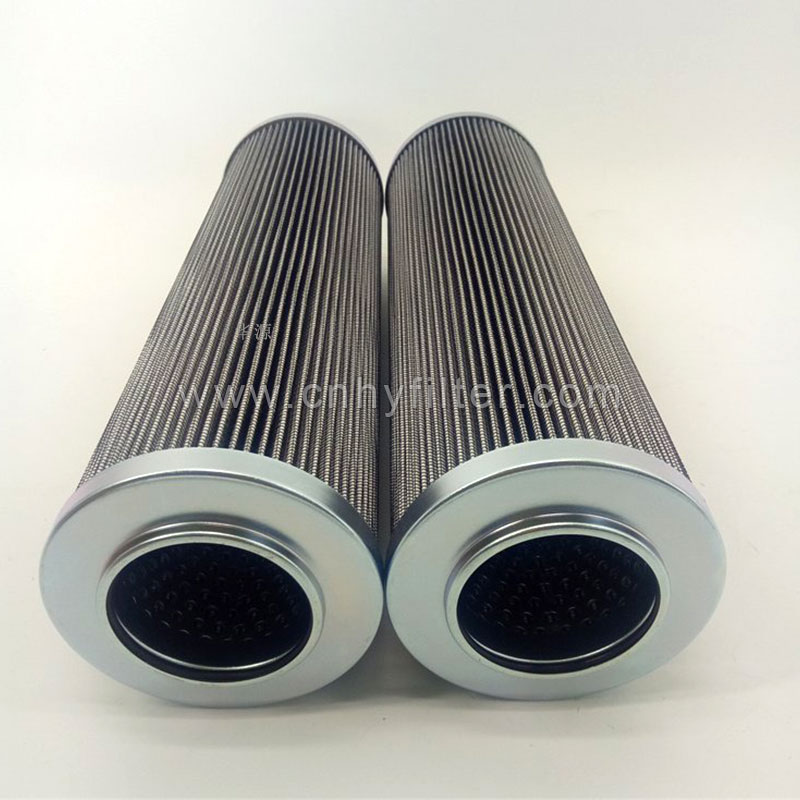

926697 926699 Parker Hydraulic Oil Filter is a folding filter element, which is made of a new type of folding technology and metal framework. The filter element has a filtering precision of 1-100 micr
Model: 926697 926699
Filtration Accuracy: 3um,10um,20um,30um
Brand: HYFILTER
Material: glass fiber
Outer diameter: standard
High: standard
926697 926699 Parker Hydraulic oil filter is a folding filter element, which is made of a new type of folding technology and metal framework. The filter element has a filtering precision of 1-100 microns and supports customized size and precision. Generally, it can be used for filtering and removing impurities of hydraulic oil and lubricating oil. The 926697 filter element is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
Huayuan Environmental Protection can produce a full range of alternative Parker filter elements.
Standard test:
(1) ISO2942 Hydraulic Transmission - Filter - Determination of Structural Integrity
(2) ISO16889 Hydraulic Transmission-Filter-Multiple Pass Method for Determining Filtration Characteristics
(3) ISO3968 Hydraulic Transmission - Filter - Determination of Pressure Drop Flow Characteristics
(4) ISO3724 hydraulic transmission - filter element - determination of flow fatigue characteristics
(5) ISO3723 hydraulic transmission - filter element - axial load test method
(6) ISO2943 hydraulic transmission - filter element - verification of material and liquid compatibility
(7) ISO2941 hydraulic transmission - filter element - verification of rupture resistance
Model:926697 926699
Medium: general hydraulic oil, grease, hydraulic oil, emulsion, water-hexanediol
Material: glass fiber filter paper-BN stainless steel woven mesh-W wood pulp filter paper-P stainless steel sintered mesh-V
Filtration precision: 1μ ~ 100μ
Working pressure: 21bar-210bar
Working medium: general hydraulic oil, grease hydraulic oil, emulsion, water-glycol
Working temperature: -30℃~+110℃
Sealing material: fluorine rubber ring, nitrile rubber
Parker filter model recommended:
927669 927737 927861Q 927964 927965 928085 928145 928152Q 928154Q 928156Q 928339Q 928642 928767 928952Q 928953Q 929099 929099Q 929100 929796 929801 929802 929900 929925 929927 929933 929936 930095 930119Q 930114Q 930193Q 930198Q 930369Q 930370Q 930438Q 930544Q 931018Q 931020Q 932016 932017Q 932020 932471 932016 932569 932634Q 932634Q 932659Q 932658Q 932670Q 932689Q 932679Q 933044Q 933220Q 933363Q 933782Q 933818Q 934121Q 934308Q 934479 934570 934572 935139 935151 935176 935181 976191 982131 983061 987111 987141 FC1090Q002BS F13938702190S FC1090Q010BS FC1090Q020BS FC1093Q002BS FC1091Q005BS FC1090Q010BS FC1090Q020BS FC1905Q002BS FC1905Q005BS FC1905Q010BS FC1905Q020BS
FC1240Q010XS FC1301Q002BS FC1301Q005BS FC1301Q010BS FC1301Q020BS FC7005Q002BK FC7005Q005BK FC7005Q010BK FC7005Q020BK FTAE1A05 FTAE1A10Q FTAE1A20Q FTBE1A05Q FTBE1A10Q FTBE1A20Q FTCE1A05Q FTCE1A10Q FTCE1A20Q G00389G00574 G00590 G00754 G00799 G00966 G00980 G00988 G01066 G01334 G01464Q SS1C4A1AP SS1C4B1AP SS1D8A1AP SS1D8A1AP SS1D8B1AP TXW1010B TXW1020B TXW3E3B TXW510B TXW3E10B TXW8A6B TXW8C6B
