The Replace Parker EAC10P020 Air filter adopts a non-metallic all plastic structure design. After replacement, only the contaminated filter material needs to be treated as hazardous waste, which can reduce the cost of waste disposal by about 50% and meet the requirements of green operation and maintenance. The polyester filter material with an absolute precision of 2 μ m can efficiently intercept dust, particulate matter, and floating dust in the air, block the invasion of external pollutants from the ventilation end of the oil tank, effectively prevent hydraulic oil from being polluted by air, and extend the service life of oil and core components such as pump valves and oil cylinders. The folding filter layer structure provides sufficient dirt holding capacity and low ventilation resistance, ensuring smooth breathing of the fuel tank and preventing abnormal negative pressure in the system. And it is easy to disassemble and maintain, with temperature resistance suitable for various scenarios such as engineering machinery, mining equipment, industrial hydraulic stations, etc. It has strong long-term reliability and can effectively reduce system pollution faults and overall operation and maintenance costs.
Applicable locations:
Energy sector: Wind turbine hydraulic station, lubricating oil station, oil tank breathing protection unit
In the field of construction machinery: hydraulic oil tank ventilation protection for excavators, loaders, and mining mobile equipment
Intelligent manufacturing: hydraulic workstations, injection molding equipment, die-casting unit oil tanks
Metallurgical industry: hydraulic oil tank ventilation and filtration device for rolling mills and continuous casting equipment
Other outdoor mobile hydraulic equipment, industrial oil storage tank ventilation device
1) Same shell universal filter element (completely universal in external dimensions): EAC10W015, EAC10G010
Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.
2) Alternative model: EABF10P20, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and central inner hole size must match; Polyester filter material cannot be cleaned or regenerated; Regularly check the ventilation status and replace it promptly in case of blockage.
Packaging and Transportation:
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
Related models:
EAC10P020、EAC10W015、EAC10G010、EAC20P020、EAC20W015
EAC20G010、EAC30P020、EAC30W015、EAC30G010、EAC10P025
EAC40P020、EAC40W015、EAC40G010、EAC50P020、EAC50W015
Technical data

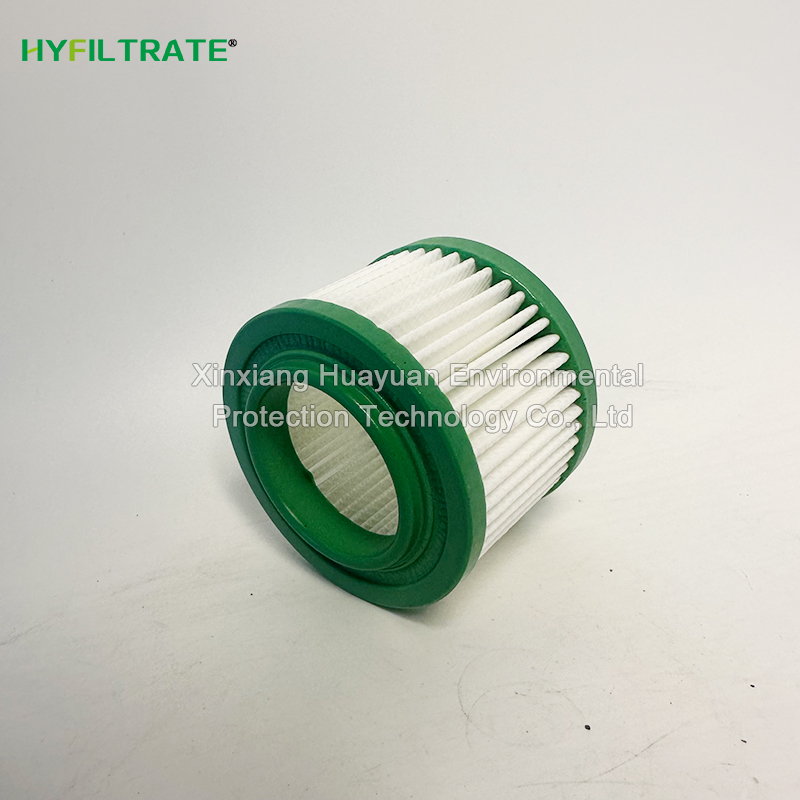

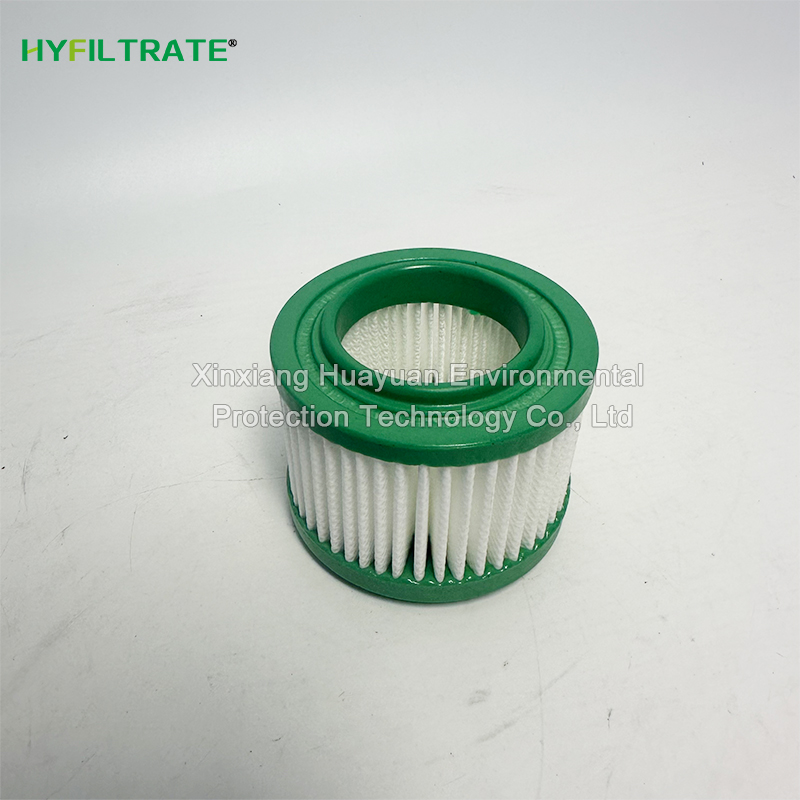

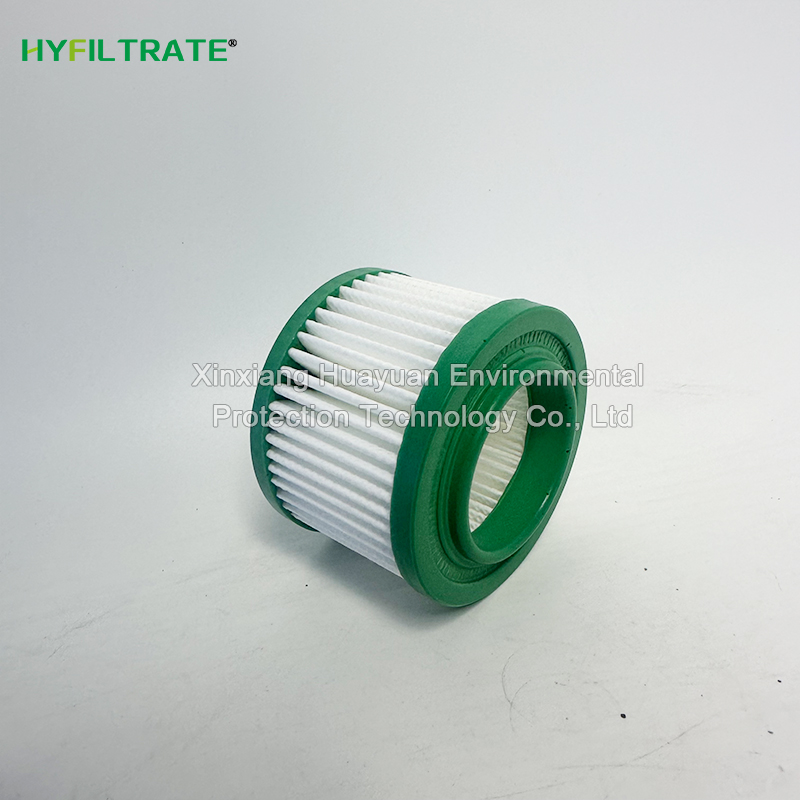

Replace Parker EAC10P020 air filter
Filter material: star shaped folded polyester fiber
Filtering accuracy: 2 μ m absolute accuracy, efficiently intercepting environmental dust, sand, and fiber impurities
Sealing material: Nitrile rubber
Working temperature range: -30 ℃~+80 ℃
Structural characteristics: Non metallic environmentally friendly design, no metal frame or metal end cap
Environmental attributes: After disposal, it can be directly compressed/incinerated, reducing the amount of hazardous waste disposal by about 50% compared to traditional metal skeleton air filters
