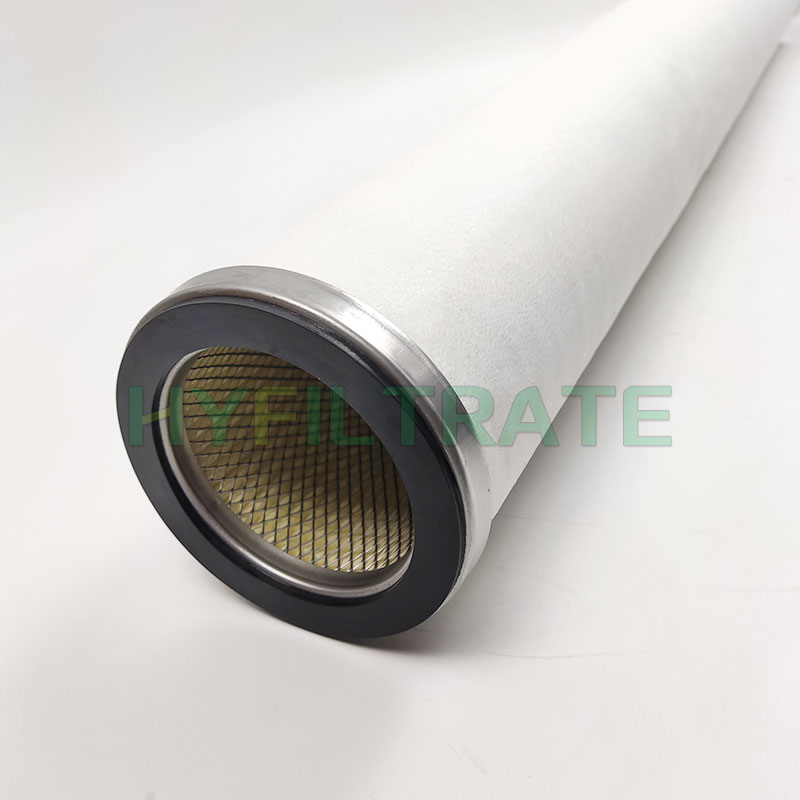

JPMG 336-R-CE-SS coalescing filter element is made of composite filter material and stainless steel inner and outer frame, which has high filtration accuracy and long service life. Xinxiang Huayuan En
Model: JPMG 336-R-CE-SS
Filtration Accuracy: 0.3um,0.5um
Brand: HYFILTRATE
Material: Glass fibre
Outer diameter: 90-114
High: 914mm
JPMG 336-R-CE-SS Coalescing filter element is made of composite filter material and stainless steel inner and outer frame, which has high filtration accuracy and long service life. Xinxiang Huayuan Environmental Protection Technology Co., Ltd. is a professional manufacturer of poly The manufacturer of knot filter element and Separation filter element, the coalescence filter element is processed by a variety of composite materials through a special process, with hydrophilic properties, it can not only filter out mechanical impurities in the medium, but also through demulsification, coalescence, The water in the emulsified state is separated from the medium and coalesced into larger water droplets to facilitate further purification of the medium. The coalescing filter element mainly uses surface-treated glass fiber or polyester fiber as the coalescing medium. The structure of the filter material is specially designed to make the filter medium have good coalescing performance. The filtration accuracy can reach 0.1μm. The inner and outer frame of Huayuan environmental protection coalescing filter element can be made of stainless steel or carbon steel, and different sizes of outer diameter, inner diameter and length can be customized according to user needs. Huayuan environmental protection coalescence filter element is widely used in aviation fuel , gasoline, kerosene, diesel, liquefied petroleum gas, petroleum tar and other media filtration. Welcome your consultation and cooperation.
Part No.: JPMG 336-R-CE-SS
Brand: HYFILTRATE
Outer diameter: 114mm
Length: 914mm
Filtering precision: 0.3 μ m, 0.5 μ m
Weight: 2.4kg

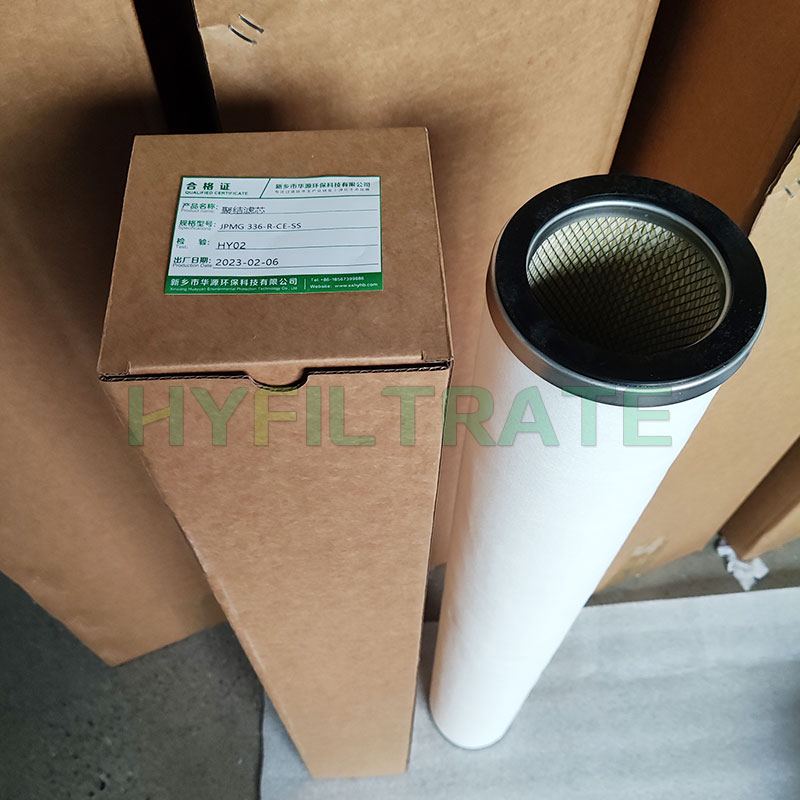

Quantity per box: 6
Filter medium: aviation fuel, gasoline, kerosene, diesel
Material: glass fiber, filter paper, polyester fiber
Delivery period: 7 days
Origin: China
Manufacturer: Xinxiang Huayuan Environmental Protection Technology Co., Ltd
| HYFILTRATE | FLOW MMSCFD | Dimensions in inches | ||||
| Element Model | 100 PSI | 400 PSI | 2000 PSI | Length | I.D. | O.D. |
| JPMG-318-R | 1.7 | 3.3 | 8 | 18 | 3.13(80mm) | 4.5(114) |
| JPMG-336-R | 2.1 | 4.1 | 10 | 36 | 3.13(80mm) | 4.5(114) |
| JPMG-536-R | 2.5 | 4.8 | 11.7 | 36 | 4.25(108mm) | 5.5(140) |
| JPMG-30226 | 0.75 | 1 | 2.25 | 29.31 | 1.5(38) | 2.75(70) |
| JPMG-36349-V | 2.7 | 5.3 | 12.9 | 36.25 | 4.2(107) | 6(152) |
| JPMG-36346C-V | 2.25 | 4.3 | 10.5 | 37.31 | 3.5(89) | 5.5(140) |
