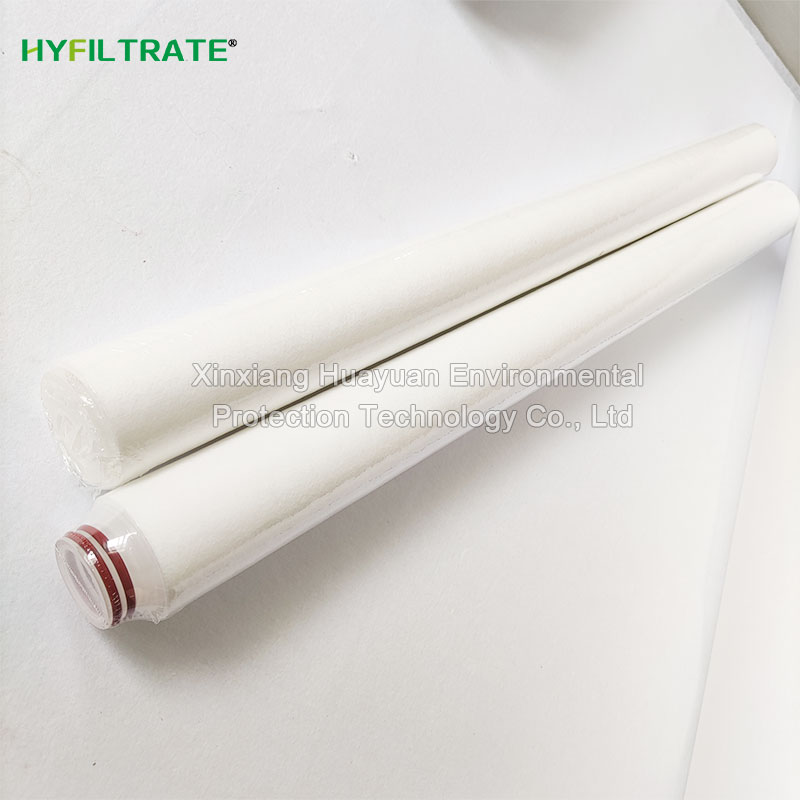

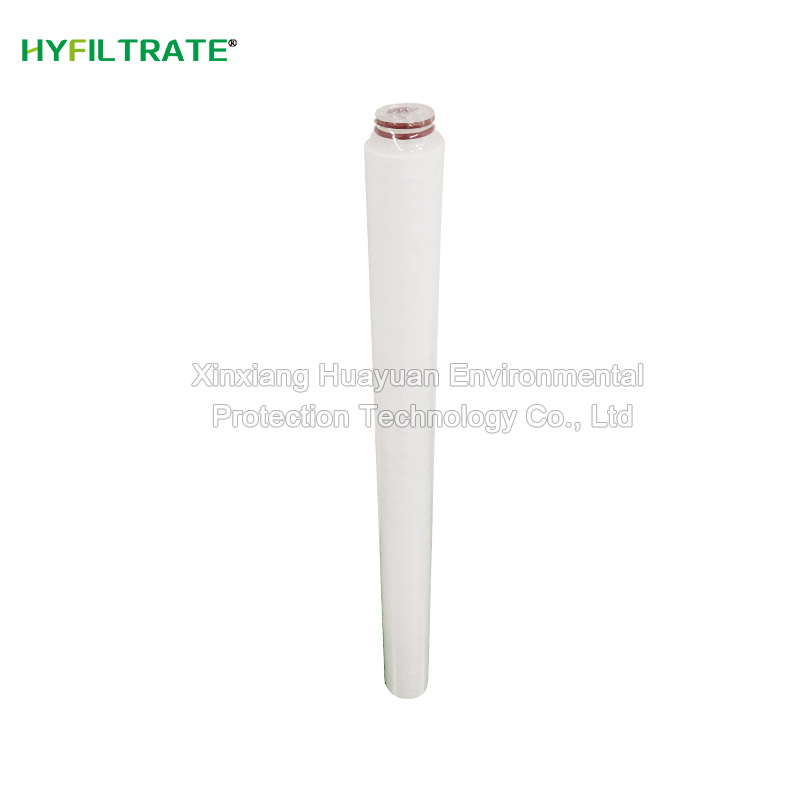

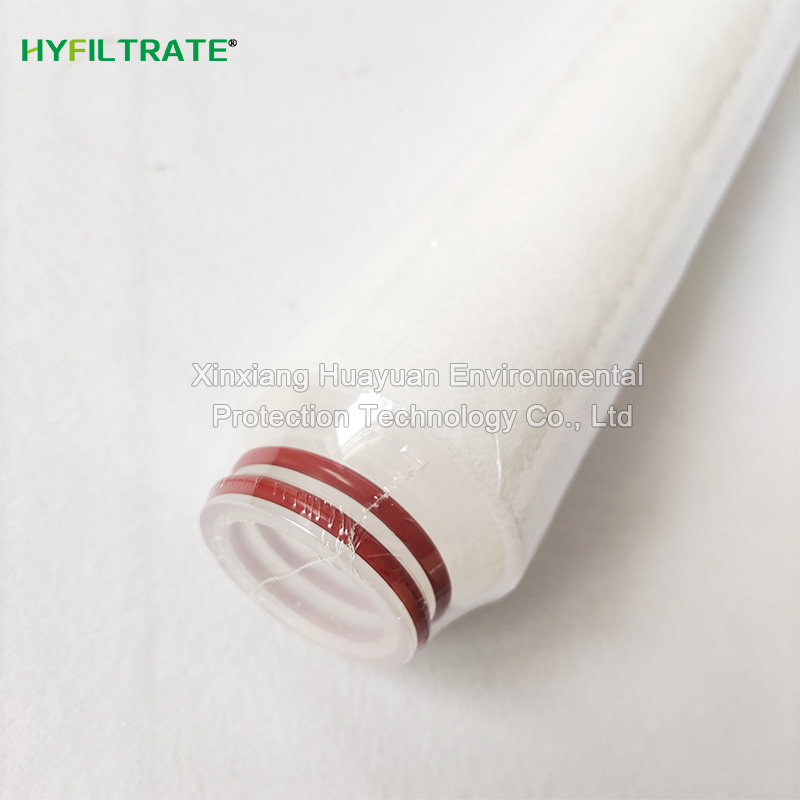

CLR10-30-M3E water filter element

Description:

The CLR10-30-M3E filter element is made of food grade polypropylene material and

Model: CLR10-30-M3E

Size: Standard size

Outer diameter: 50mm

Inside diameter: 20mm

Material: Fiberglass

Share With:

The CLR10-30-M3E filter element is made of food grade polypropylene material and forms a gradient density fiber layer through melt blown technology. Capable of intercepting impurities of different particle sizes in layers. It can effectively intercept suspended solids above 10um, ensuring that the effluent quality meets food grade safety requirements. Compared with ordinary filter cartridges, its spiral winding process further increases the effective filtration area, increases the pollutant holding capacity by about 30% under the same volume, and significantly prolongs the replacement cycle.

Technical data

CLR10-30-M3E water filter element

Filtering accuracy: The nominal accuracy is 10um, and the retention rate for particles with a diameter of ≥ 5 μ m is ≥ 99.7%.

Chemical compatibility: Resistant to acidic and alkaline solutions with pH 2-12, and ethanol can tolerate concentrations up to 95%.

Working temperature: Suitable temperature range -10 ℃ to 80 ℃, can withstand high temperatures of up to 100 ℃ in the short term.
