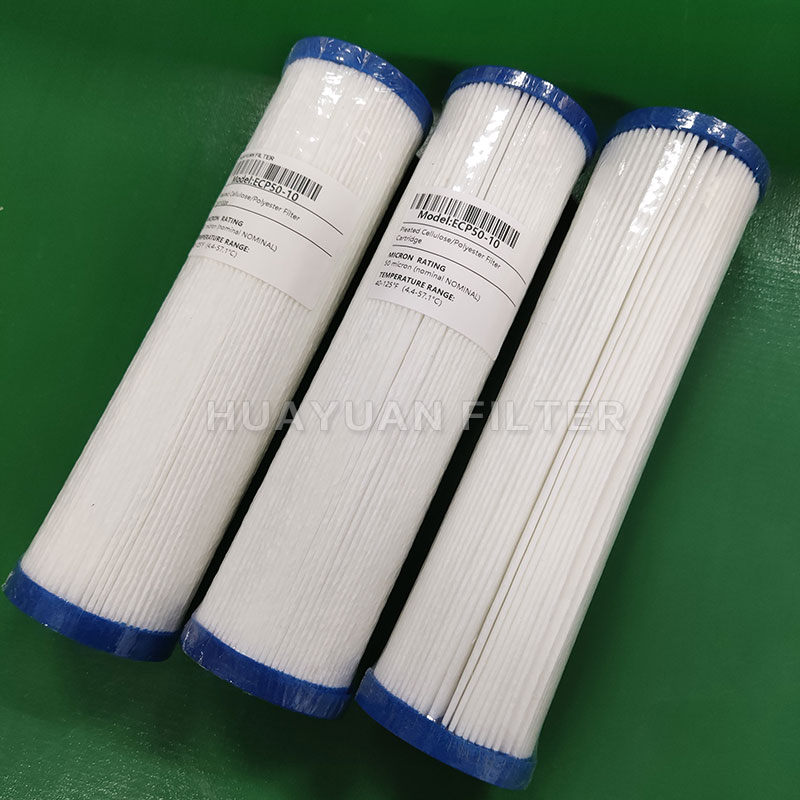

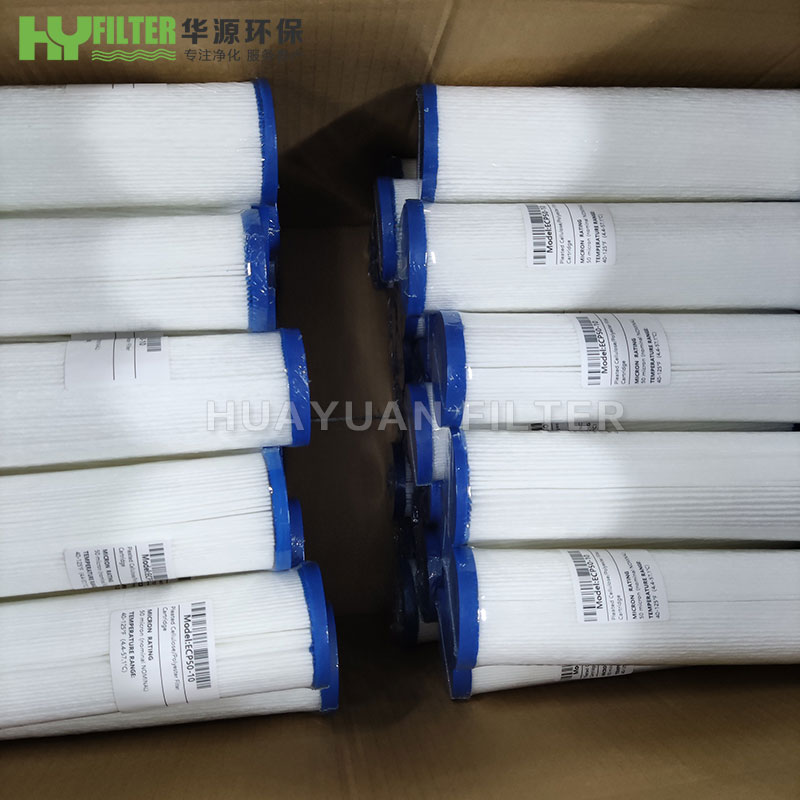

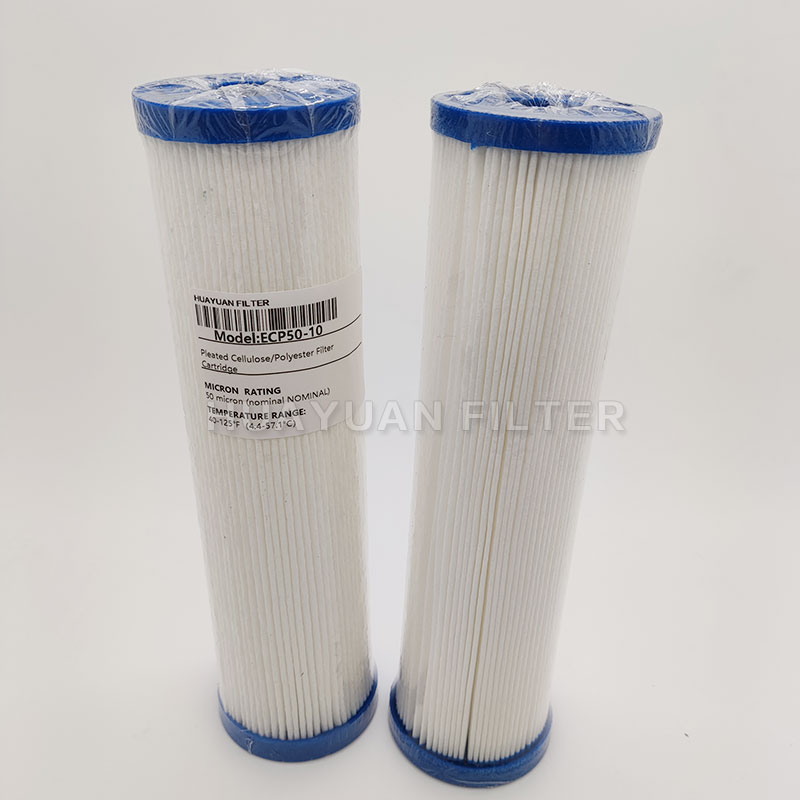

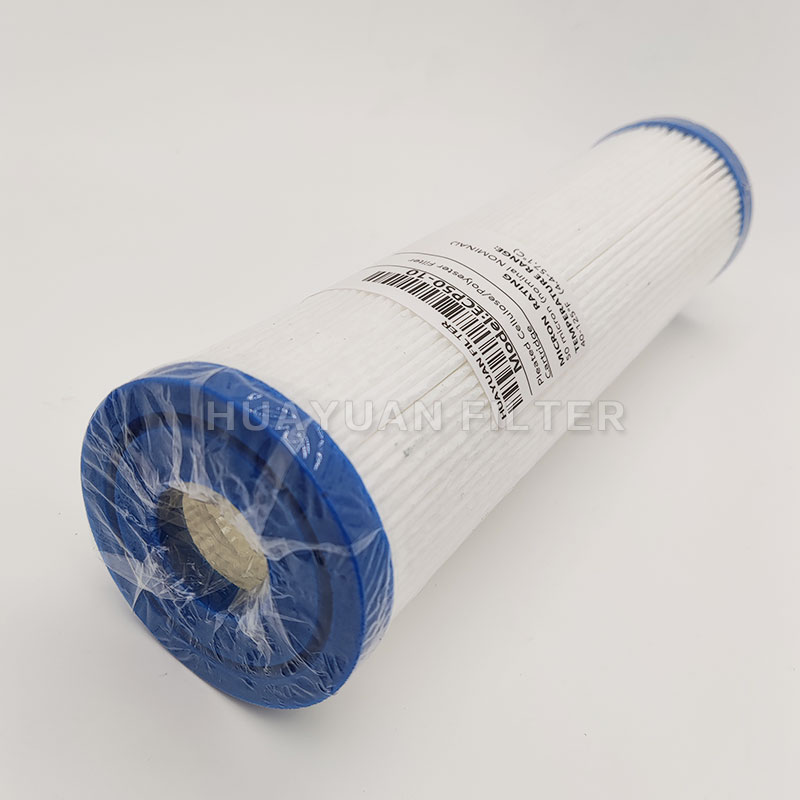

ECP50-10 Pentek Pleated Water Filters are made of polyester fiber aluminum and polypropylene skeleton, and the filtration accuracy can reach 50 microns. Sand, hair, iron filings and other impurities a
Model: ECP50-10
Size: 10", 20", 30", 40"
Outer diameter: 65-68mm
Inside diameter: 28-30
Material: Polyester
ECP50-10 Pentek Pleated Water Filters are made of polyester fiber aluminum and polypropylene skeleton, and the filtration accuracy can reach 50 microns. Sand, hair, iron filings and other impurities are efficiently intercepted.
Filter Media: Pleated cellulose polyester
Application: City water only
Contaminant Reduction: Sediment (sand, dirt, silt, rust, and scale particles)
Dimensions: 9-3/4" L x 2-5/8" D
Rating: 50 micron
Flow Rate: <1 psi at 10 gpm
Temperature Rating: 40°F to 125°F
Part Number: 255484-43 / 25548443
ECP Series Cartridges Overview:
High flow filtration
Provides higher wet strength than regular cellulose cartridges
Special formulation of resin-impregnated cellulose and polyester fibers
Minimal unloading and media migration
Replaces CP and HFCP Series cartridges
ECP Series cartridge end caps feature a color-coding system for easy identification of micron ratings: Tan (1 micron); White (5 micron); Blue (20 micron); and Yellow (50 micron)
Recommended for chlorinated water supplies
