The YGLQ-90x100 magnetic filter adopts a composite filtering structure of a filt
Model: YGLQ-90x100
Filtration Accuracy: 100μm
Brand: HYFILTRATE
Material: stainless steel
Outer diameter: 90mm
High: 100mm

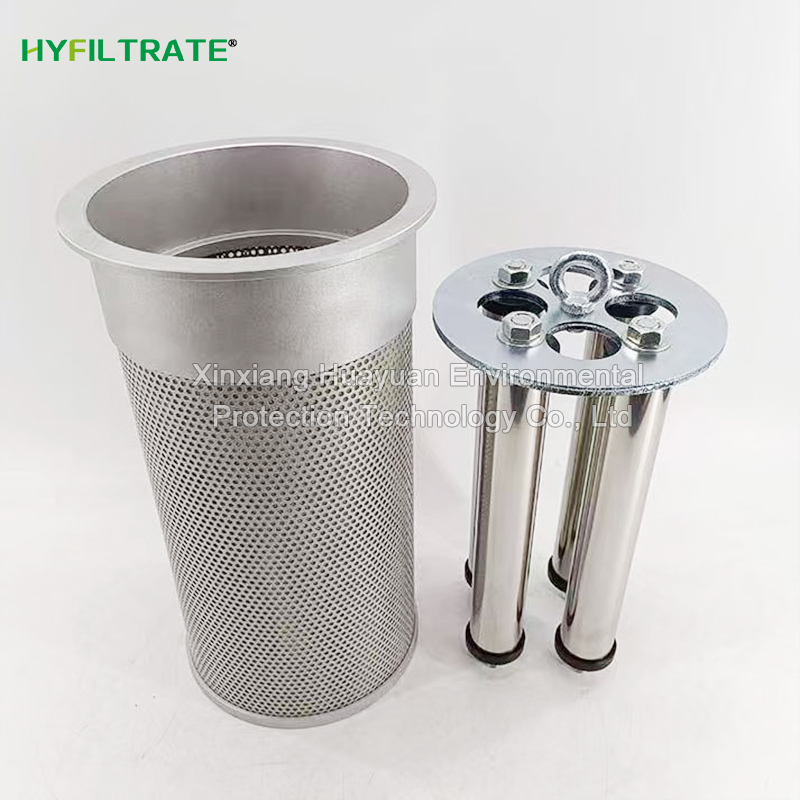

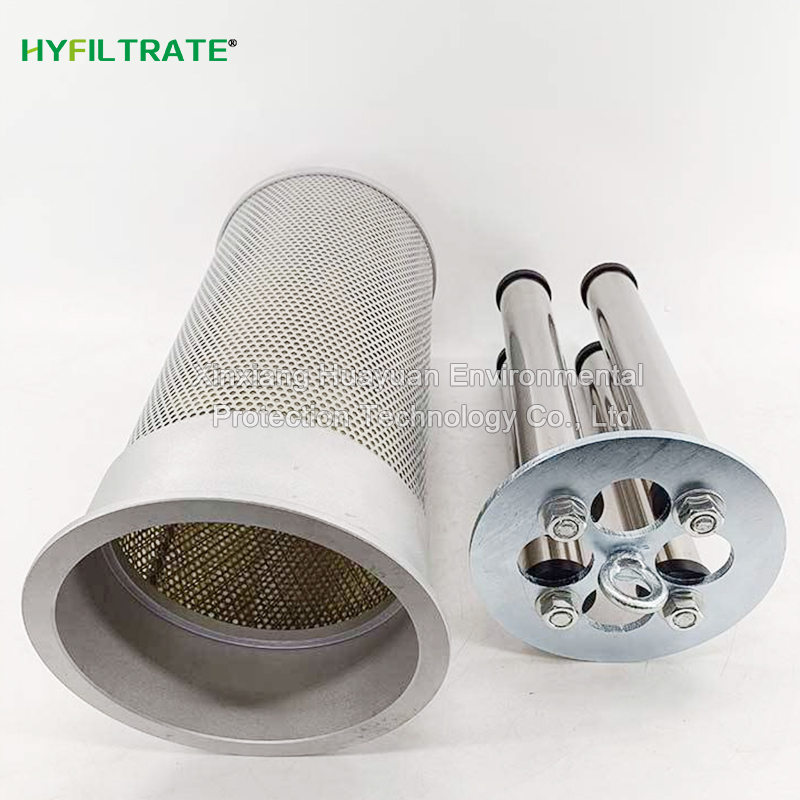

The YGLQ-90x100 magnetic filter adopts a composite filtering structure of a filter screen and a strong magnetic rod. The filter screen intercepts large particle impurities, and the magnetic rod continuously adsorbs fine iron filings and rust powder, double purifying the oil and effectively protecting precision moving parts such as oil pumps and bearings. The overall structure is compact, with low flow resistance and is not easily blocked; The magnetic decay of the magnetic rod is slow, and its service life is long. Easy disassembly and cleaning, reusable after impurity removal, no need to frequently replace filter elements, suitable for the working conditions of thin oil lubrication stations and hydraulic oil tanks, stable maintenance of oil cleanliness, reduced component wear, and lowered equipment maintenance costs.
Power industry: thin oil lubrication station for steam turbine units, lubricating oil tank for fan gearboxes
Metallurgical equipment: hydraulic lubrication system for rolling mill, circulating oil circuit for smelting equipment
General industry: various types of machine tool hydraulic stations, injection molding machines, air compressor lubrication systems
Construction machinery: large hydraulic power units, lubricating oil tanks for mining equipment
Other: Ship lubrication system, test bench hydraulic oil tank, gearbox circulating oil system
YGLQ-60 × 80, YGLQ-60 × 100, YGLQ-60 × 120, YGLQ-70 × 80, YGLQ-70 × 100
YGLQ-70 × 120, YGLQ-80 × 80, YGLQ-80 × 100, YGLQ-80 × 120, YGLQ-90 × 80
YGLQ-90 × 100, YGLQ-90 × 120, YGLQ-100 × 100, YGLQ-100 × 120, YGLQ-100 × 150

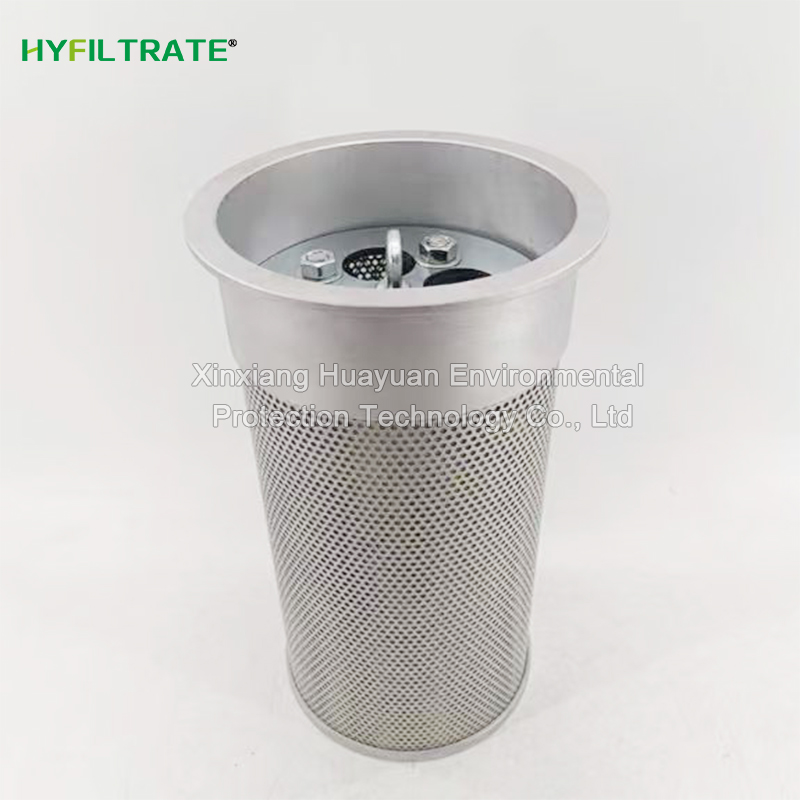

YGLQ-90x100 magnetic filter
Exterior specifications: outer diameter 90mm, total height 100mm
Magnet: neodymium iron boron permanent magnet rod, surface magnetic field ≥ 8000Gs, capturing micrometer sized ferromagnetic abrasive particles
Outer casing: perforated steel plate support, built-in metal woven filter screen
Working temperature: -10 ℃~90 ℃; Suitable media: hydraulic oil, lubricating oil
Working pressure difference: ≤ 0.6MPa; Flow direction: from outside to inside
End cover: Aluminum alloy die-casting, standard NBR rubber seal, top with lifting handle
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
