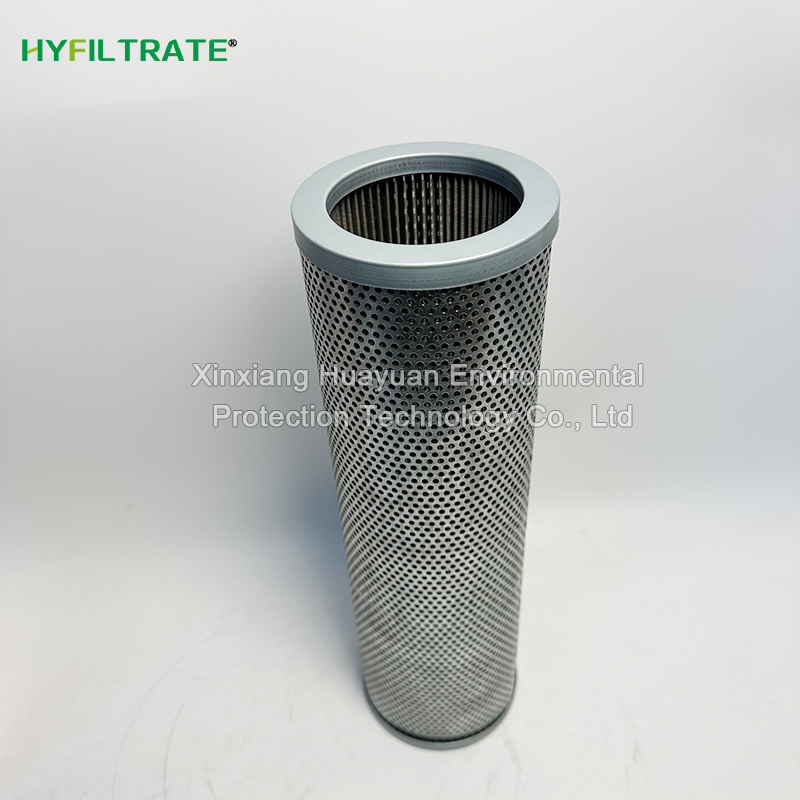

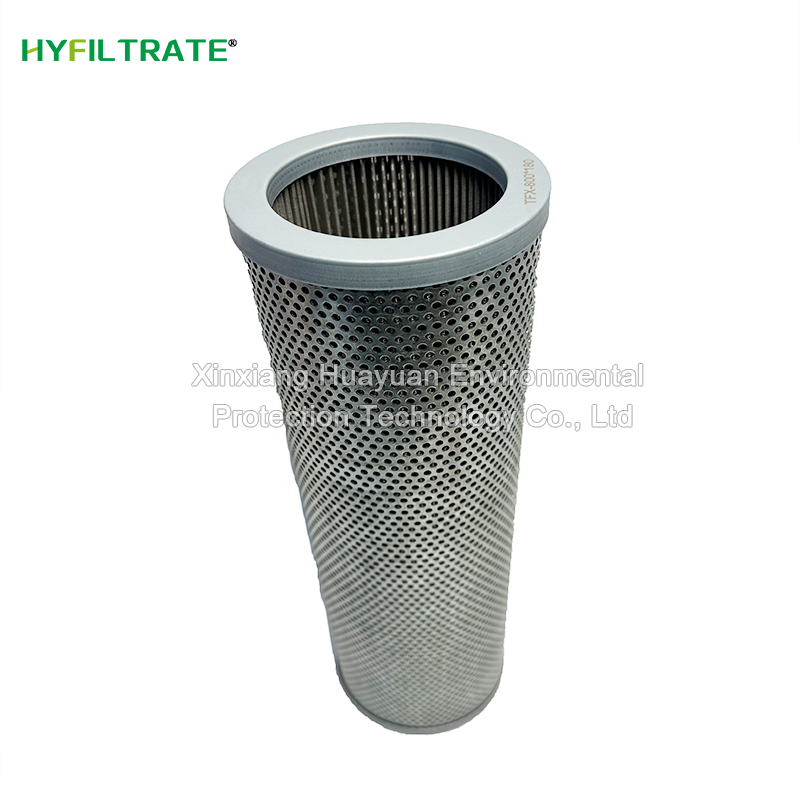

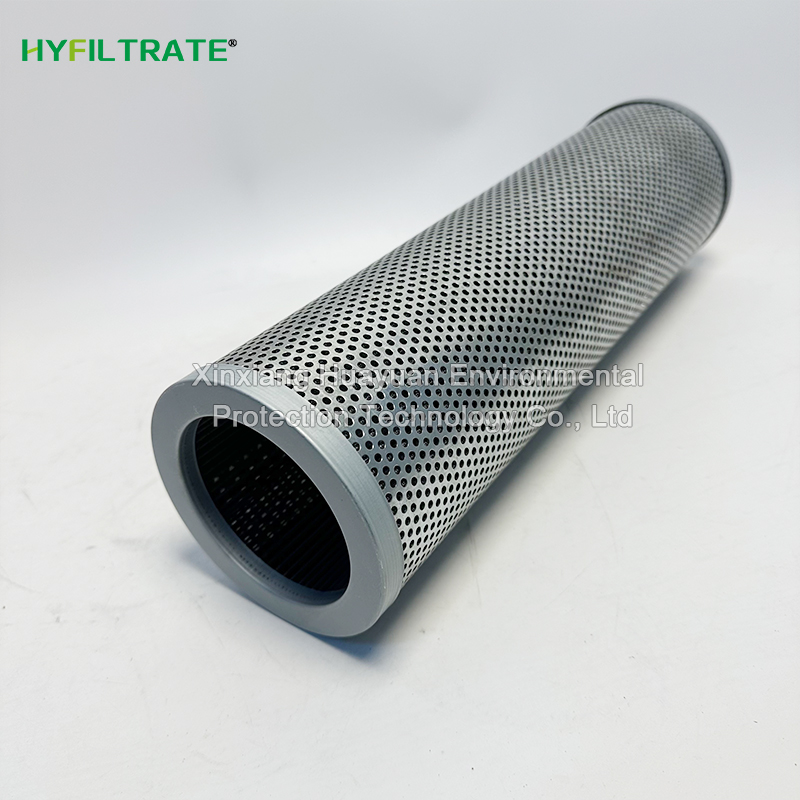

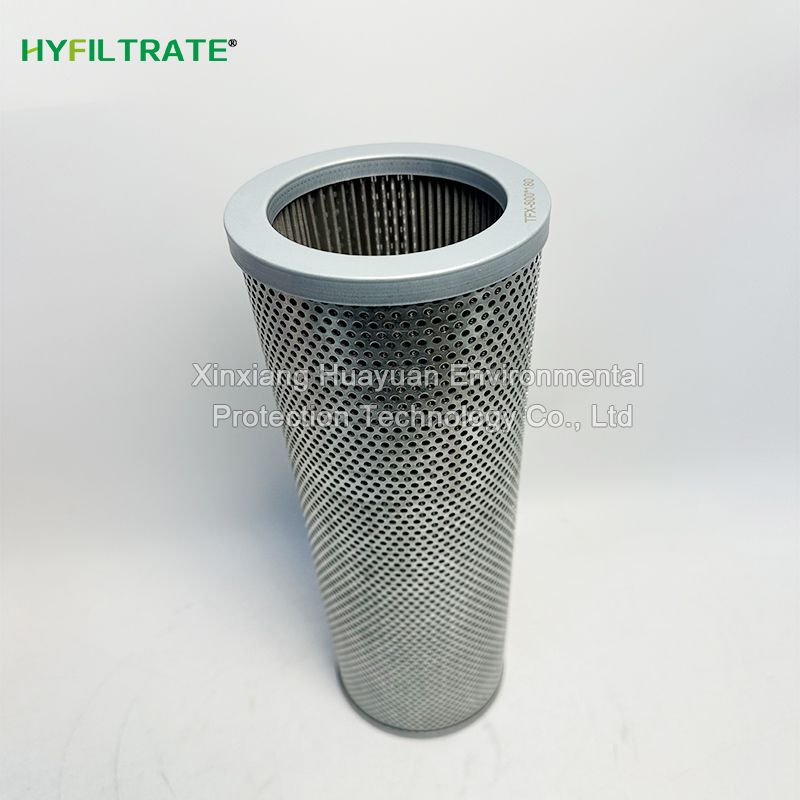

Replace the MODE TFX-800 × 80 hydraulic oil filter element

Description:

Replacing the MODE TFX-800 80 hydraulic oil filter element can intercept pipeli

Model: TFX-800 × 80

Filtration Accuracy: 180μm

Brand: HYFILTRATE

Material: fiberglass

Outer diameter: 110 mm

High: 380mm

Share With:

Replacing the MODE TFX-800 × 80 Hydraulic oil filter element can intercept pipeline welding slag, rust, and sealing rubber fragments in advance, avoiding gear pump/plunger pump distribution plate and blade strains from the source, significantly extending the service life of the oil pump, and reducing overhaul costs. And the inner and outer double-layer perforated steel plates support it, so that the filter material will not be shrunk or blocked when the oil pump absorbs oil and generates negative pressure, ensuring stable circulation during long-term operation.

Technical data

Replace the MODE TFX-800 × 80 hydraulic oil filter element

Filtering accuracy: 180 μ m

Maximum working pressure: 1.6 MPa

Maximum allowable pressure difference: 0.08 MPa (blockage alarm pressure difference 0.035 MPa)

Working temperature: -10 ℃~+65 ℃

Sealing material: NBR nitrile rubber

Skeleton: Thick galvanized carbon steel punching support mesh

Filter material: folded fiberglass
