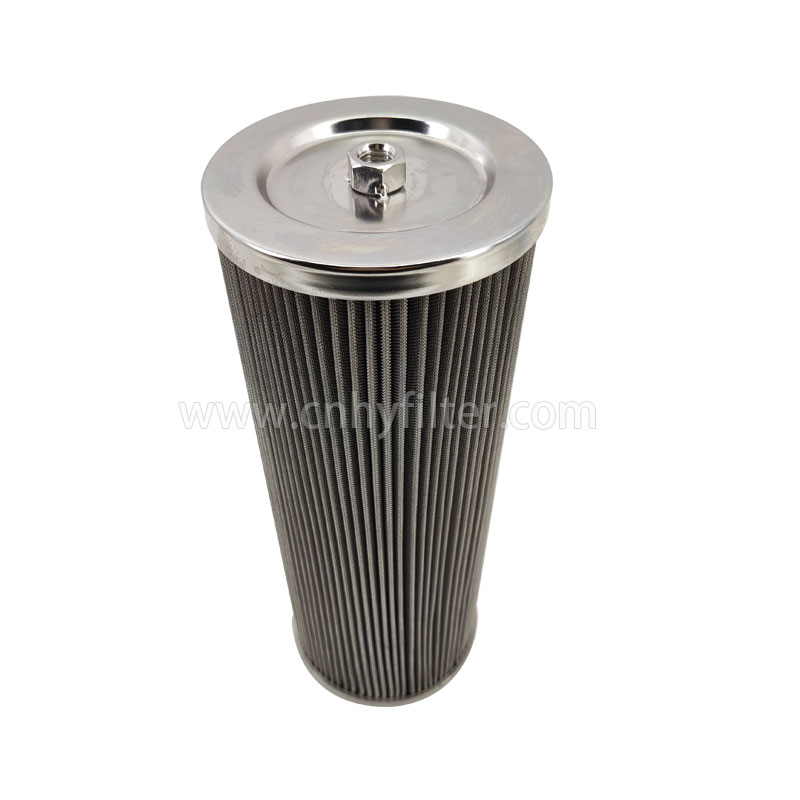

Replace FRICK 531A0028H01 oil filter element

Description:

The replacement FRICK 531A0028H01 oil and gas separation filter element is installed in the oil and gas separator of the compressor to remove oil mist and solid particles in the compressed air, provid

Model: 531A0028H01

Filtration Accuracy: 1um,5um,10um

Brand: HYFILTRATE

Material: Glass fibre

Outer diameter: 152mm

High: 368mm

Share With:

The replacement FRICK 531A0028H01 oil and gas Separation filter element is installed in the oil and gas separator of the compressor to remove oil mist and solid particles in the compressed air, provide clean air source for the rear system of the compressor, and the suction filter element is installed at the suction port of the compressor to filter dust and other impurities in the refrigerant, The oil filter element to protect the normal operation of the compressor is used to further remove the metal powder produced by the wear of various components in the oil and the colloidal particles produced by the chemical action of the system medium, so as to extend the service life of the compressor.


Alternative York filter element model:

York 531B0100H03

York 531B0100H02

York 531B0100H01

York 531B0099H01

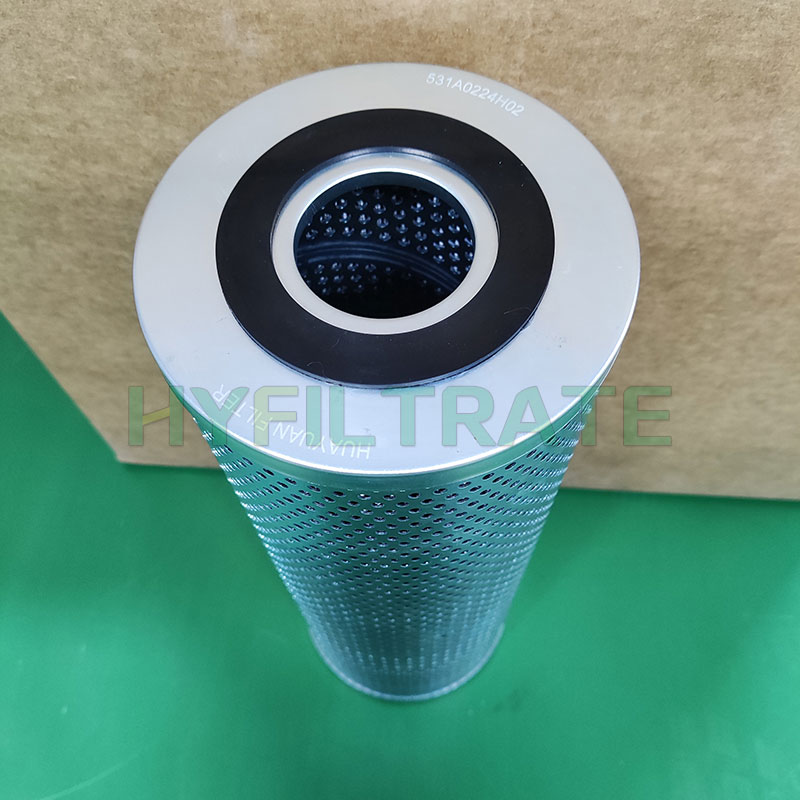

York 531A0224H02

York 531A0218H02

York 026-37563-000

York 026-43089-000

York 026-14777-007

York 026-13508-000

York 026-32841-000

York 026-32839-000

York 026-32831-000 black net

York 026-32831-001 copper mesh

York 026W36838-000

York 026W48382-001

York 026-35601-000

York 026-32386-000

York P/N535A0354H02


Technical data

Part No.: 531A0028H01

Type: folding filter element

Delivery period: 10-15 days

Manufacturer: Xinxiang Huayuan Environmental Protection Technology Co., Ltd

Country of origin: China

Length:368mm/14.500 inches

Outer Diameter:152mm/6.000 inches

Inner Diameter:89mm/3.500 inches

Filter Type:Pleated Paper Elements

Filtration Selectivity Raring:15 MICRON

Maximum Flow:N/A

Operating Temperature Range:275 F MAX

Initial Differential Pressure:1.5 PSID

Center Tube:PERF ETP STEEL

End Caps:ETP STEEL

Jacket:PERF ETP STEEL
