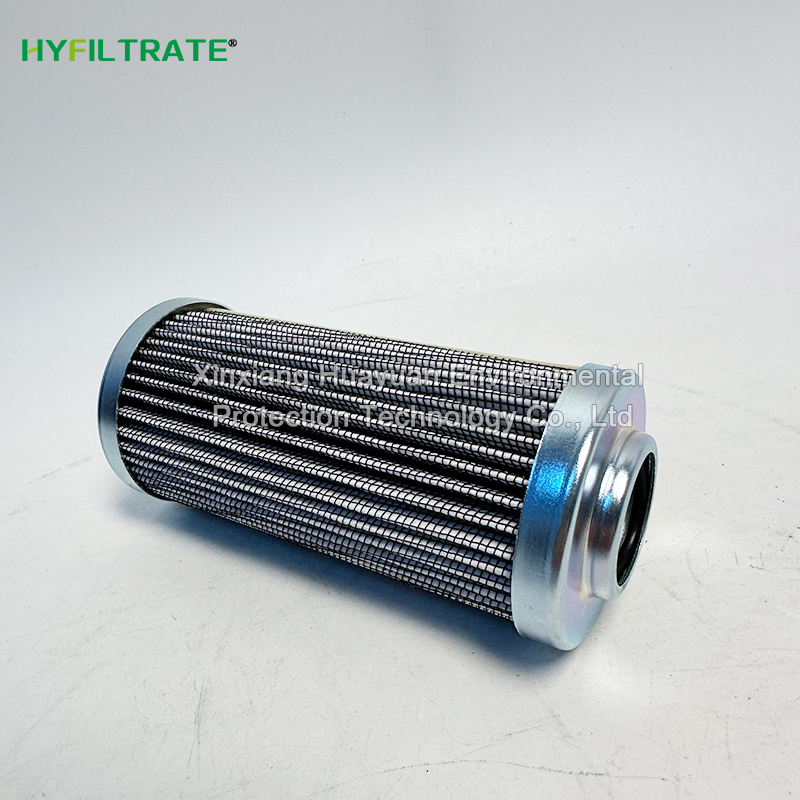

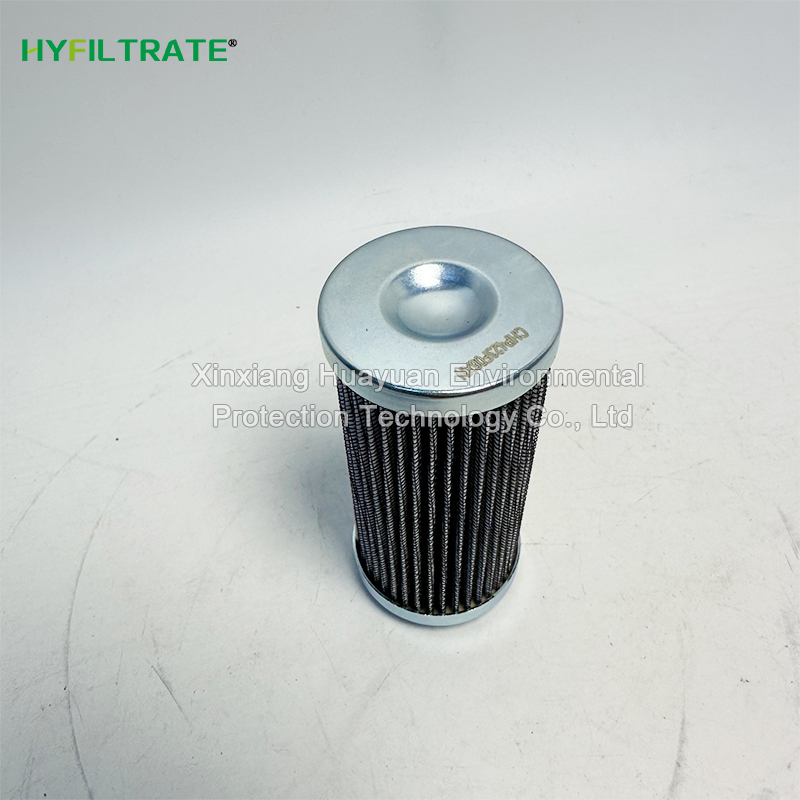

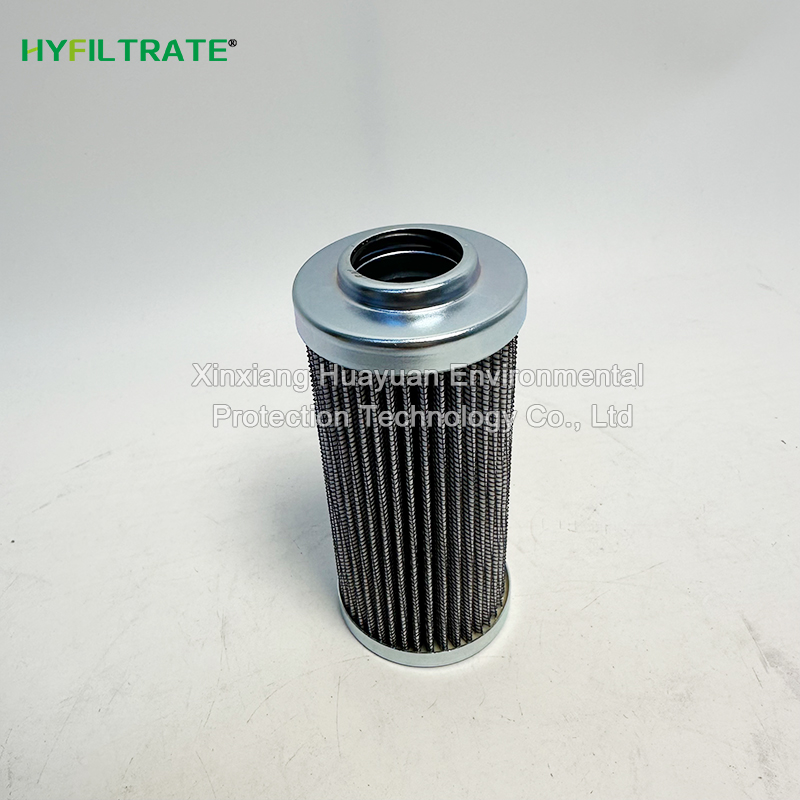

Replace OMT CHP423F06XN hydraulic oil filter element

Description:

Replacing OMT CHP423F06XN hydraulic oil filter element can efficiently intercept

Model: CHP423F06XN

Filtration Accuracy: 6μm

Brand: HYFILTRATE

Material: fiberglass

Outer diameter: 53 mm

High: 116 mm

Share With:

Replacing OMT CHP423F06XN Hydraulic oil filter element can efficiently intercept micron level grinding impurities, maintain oil cleanliness for a long time, and significantly reduce the failure rate of proportional valve sticking and oil pump pulling. The closed-loop servo system comes standard with filter element. And it adopts a uniform star shaped wrinkled structure, with a gentle rise in hydraulic pressure difference at low temperatures and high viscosity in winter, which is not easy to trigger pressure difference alarm shutdown and reduces the power consumption of the oil pump load.


Technical data

Replace OMT CHP423F06XN hydraulic oil filter element

Accuracy: 6 μ m absolute accuracy, β ₆ ≥ 200, solid particle interception efficiency of over 99.5%

Fiberglass undergoes anti-static impregnation treatment to eliminate the problem of oil static adsorption and pore blockage

Working temperature: -25 ℃~+120 ℃ (-13 ℉~248 ℉)

Compatible media: mineral hydraulic oil, gear oil, water ethylene glycol, phosphate ester EH fire-resistant and fire-resistant oil, high-temperature synthetic lubricating oil
