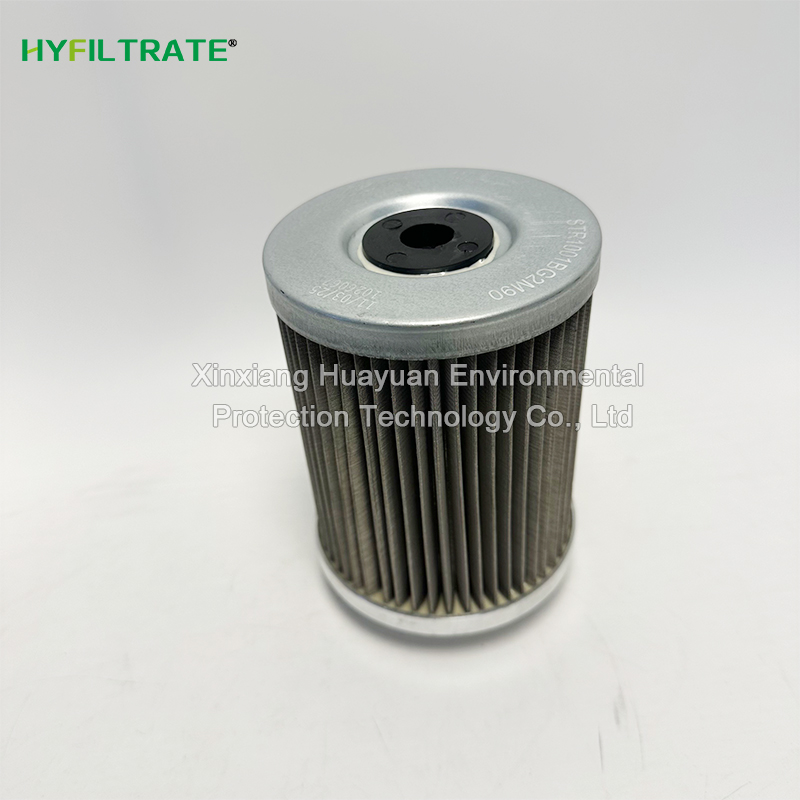

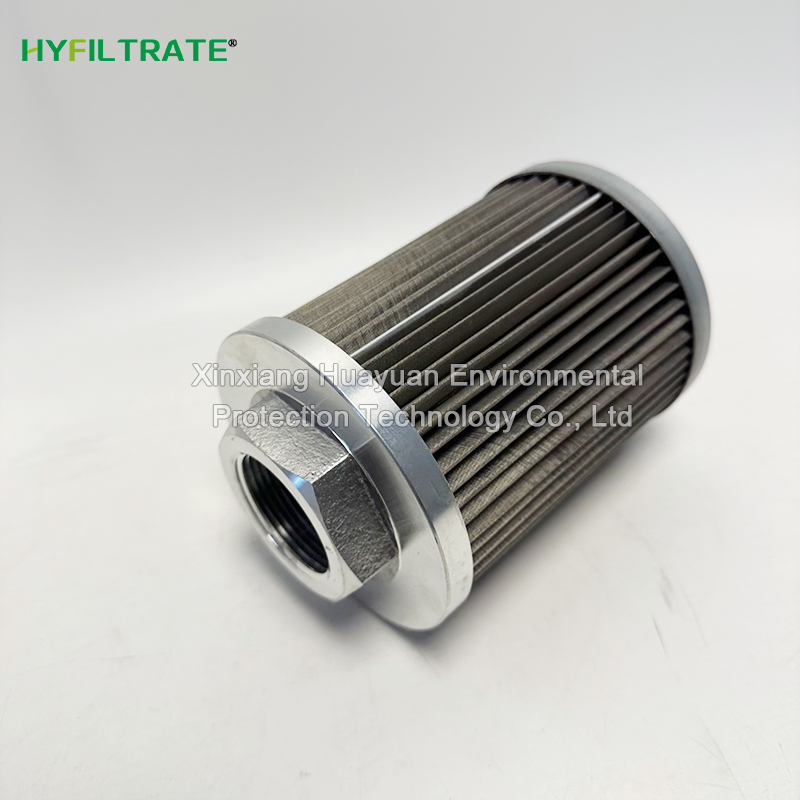

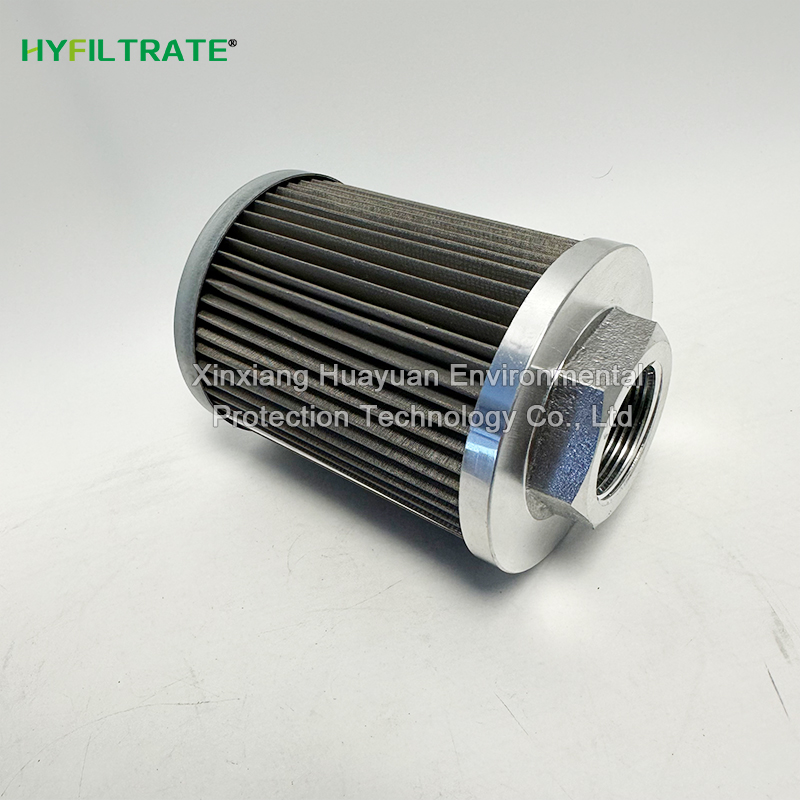

Replace MP STR1001BG2M90 hydraulic oil filter element

The low flow resistance of the MP STR1001BG2M90 Hydraulic oil filter cartridge is suitable for low-pressure suction conditions at the front end of the oil pump, blocking large particles of hard pollutants from entering the pump body and avoiding impeller scratches and damage. The filter material can be cleaned and reused multiple times, effectively reducing long-term consumables investment. The integrated support cylinder resists liquid flow disturbance and is not easily deformed or blocked. Compact structure, suitable for narrow installation space inside the fuel tank, serving as the first protective barrier for the oil pump, reducing the load on downstream Precision filters, and ensuring continuous and stable fuel supply.

Applicable locations:

Construction machinery industry: hydraulic oil tank suction protection unit for excavators and bulldozers

Rubber equipment: large injection molding and extrusion unit oil pump pre coarse filtration device

Machine tool manufacturing: Heavy hydraulic machine tools, stamping equipment oil supply pre protection

Agricultural machinery: hydraulic oil supply circuit for large harvesters and land preparation equipment

Other scenarios include mobile hydraulic equipment and medium to large hydraulic stations with built-in oil suction filters

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): STR1001BG2M60, STR1001BG2M250

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: MPSTR1001M90, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and thread interface size must match; Regularly clean the impurities in the filter screen; After assembly, ensure that the filter element is completely submerged below the oil level to avoid inhaling air.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

STR1001BG2M90、STR1001BG2M60、STR1001BG2M250、STR1001BG1M90、STR1001BG1M60

STR1002BG2M90、STR0701BG2M90、STR1401BG2M90、STR0861BG2M90、STR0501BG2M90

STR1001SG2M90、STR1003BG2M90、STR1001BG2M90P01、STR1001BG2M60P01、STR1001BG1M250
