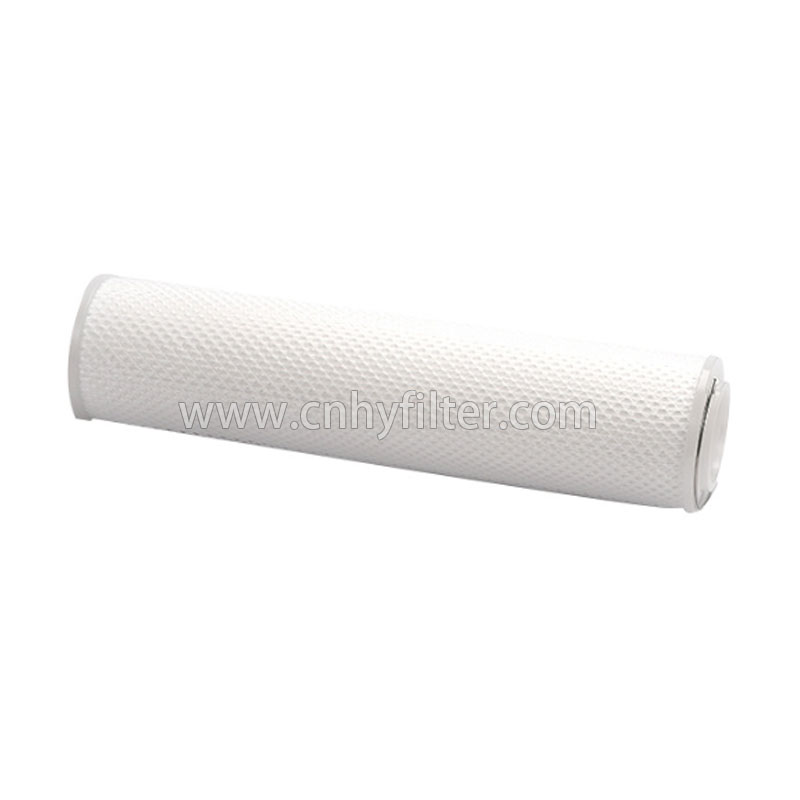

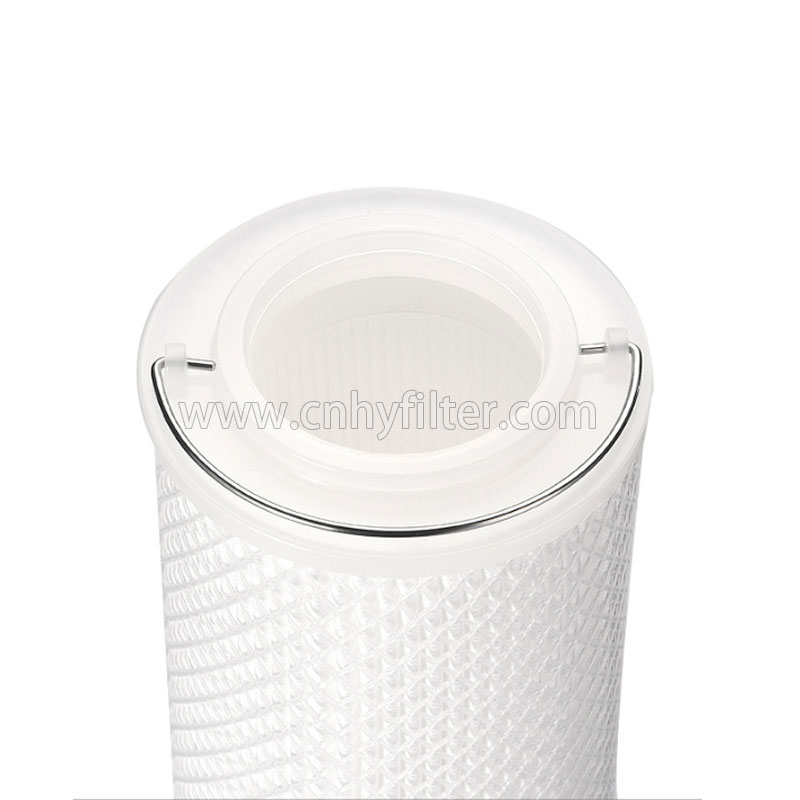

The XLDM102UNF replaces the Pall high-flow pleated filter element material, which is made of folded polypropylene filter membrane and non-woven filter membrane, with an accuracy of 10 microns. With th
Model: XLDM102UNF
Size: 20"(508mm)
Outer diameter: 160
Inside diameter: 88
Material: polypropylene
The XLDM102UNF replaces the Pall high-flow pleated filter element material, which is made of folded polypropylene filter membrane and non-woven filter membrane, with an accuracy of 10 microns. With the design of 160mm large diameter, the flow rate of a single filter element can reach 20T/H. The redesigned filter element is a replacement product produced by Xinxiang Huayuan Environmental Protection. We can provide global export business.
Related models:
XLDM202UNF
XLDM4540UHFJ
XLDM7040UHFJ
XLDM4560UHFH13
NXAM102UNF
NXAM202UNF
Material Dimensions (nominal)
Media: Polypropylene Filter Length: 20" (508 mm), 40"
Support Material: Polypropylene (1016 mm), 60" (1524 mm)
End cap: 10% glass fiber reinforced polypropylene
Inner Core (60" length only): Polypropylene Peak Element OD: 6.3" (160 mm)
O-Ring/U-Ring Seal Options: EPDM Media OD: 5.9" (150mm)
Rubber, fluorocarbon elastomer, nitrile rubber Media ID: 3.5" (89 mm)
Maximum working pressure difference 1
50psid (3.4 bard) at 68F (20°C) 35psid (2.4 bard) at 160F (71°C)
