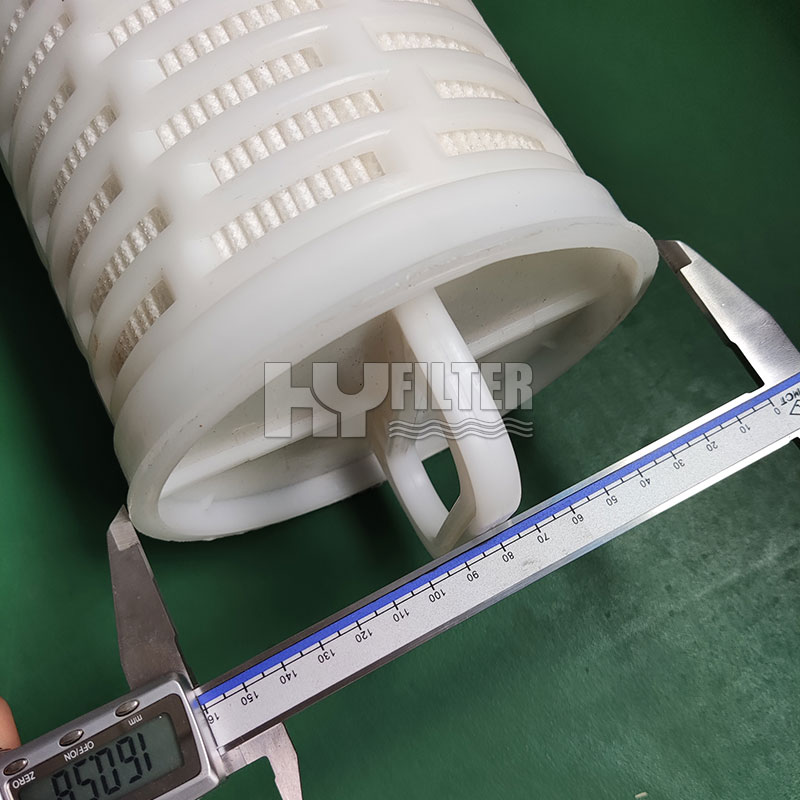

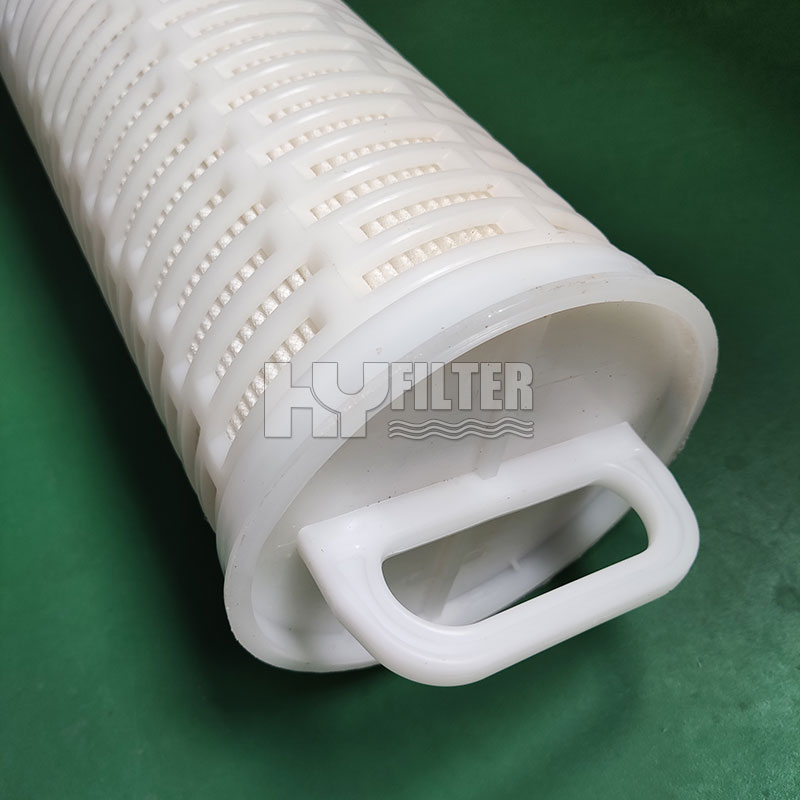

Replaces 3M High Flow Series Filter Cartridge

The high-flow filter element produced by our company uses deep fine polypropylene or glass fiber membrane as the filter material, adopts pleating technology, and has a large diameter, and the flow rate is twenty times that of conventional filter elements. There are two forms of liquid flow according to the actual working conditions: one is the liquid flow direction from the inside to the outside, all the pollutant particles are intercepted inside the filter element, reducing the sedimentation of pollutants in the filter. The other is the liquid flow from the outside to the inside, and all the pollutant particles are intercepted outside the filter element and can be discharged through the drain valve of the filter. Due to its ultra-large flow design, the use of filter elements and filters is significantly reduced under the same flow application, which saves equipment investment costs and labor costs.

Features:

1. The filter membrane adopts a folded deep structure, and the membrane filtration area is large; it adopts a high porosity deep long fiber layer filtration structure, which has good pressure resistance;

2. The multi-layer gradient pore size filtration structure is scientifically designed, so that the filter element has the characteristics of high dirt holding capacity, thus prolonging the service life of the filter element and saving user costs

3. High filtration precision, can effectively filter impurities such as microorganisms, suspended solids, particles, rust and other impurities in the liquid, and the retention efficiency of impurities is greater than 98%;

4. The filter element bears high filtration pressure;

5. Reasonable structure makes the filter element have high dirt holding capacity;

6. The interfaces at both ends of the filter element are welded by infrared heat fusion, which has higher strength and excellent sealing;

7. The use of 4mm thick PP high-strength skeleton can effectively alleviate the flattening of the filter element caused by the pressure difference.
