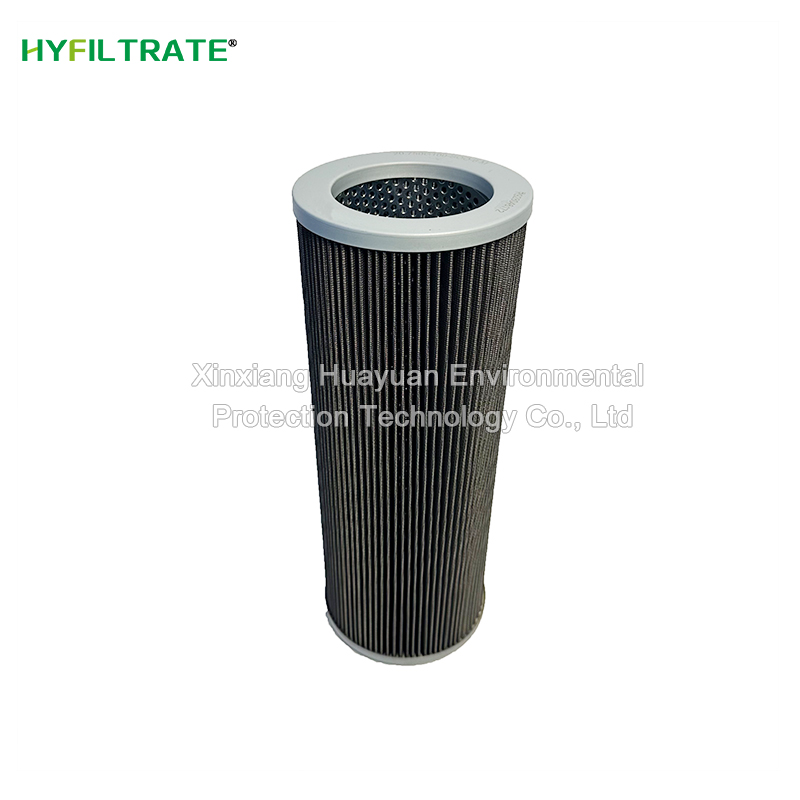

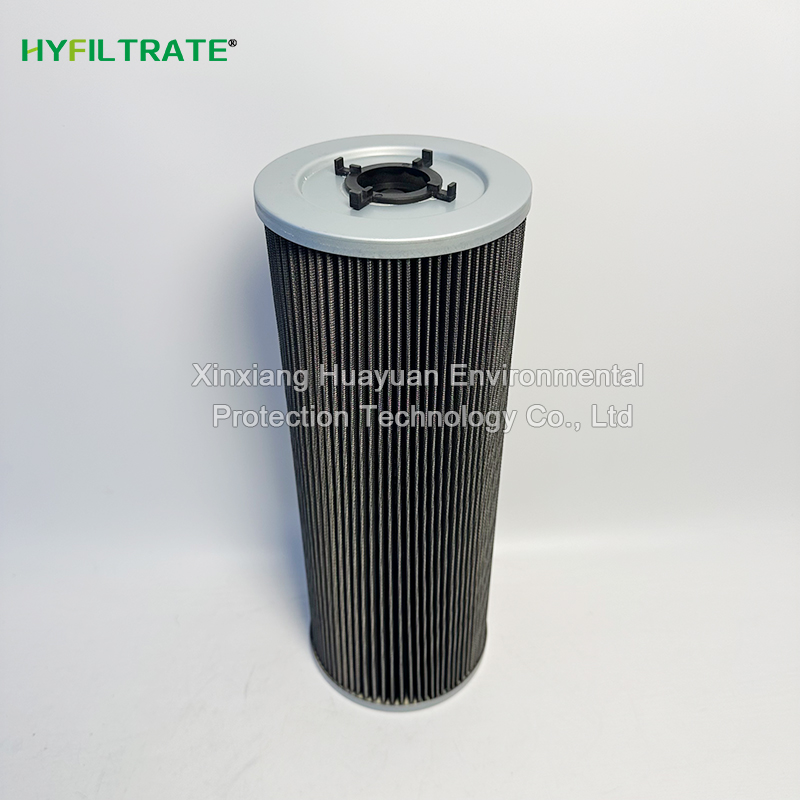

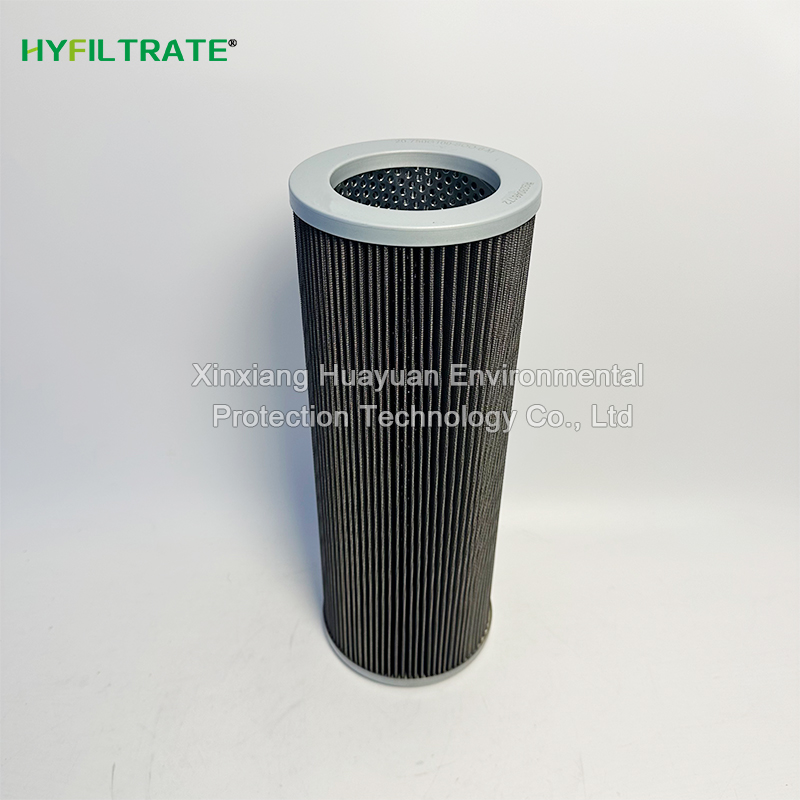

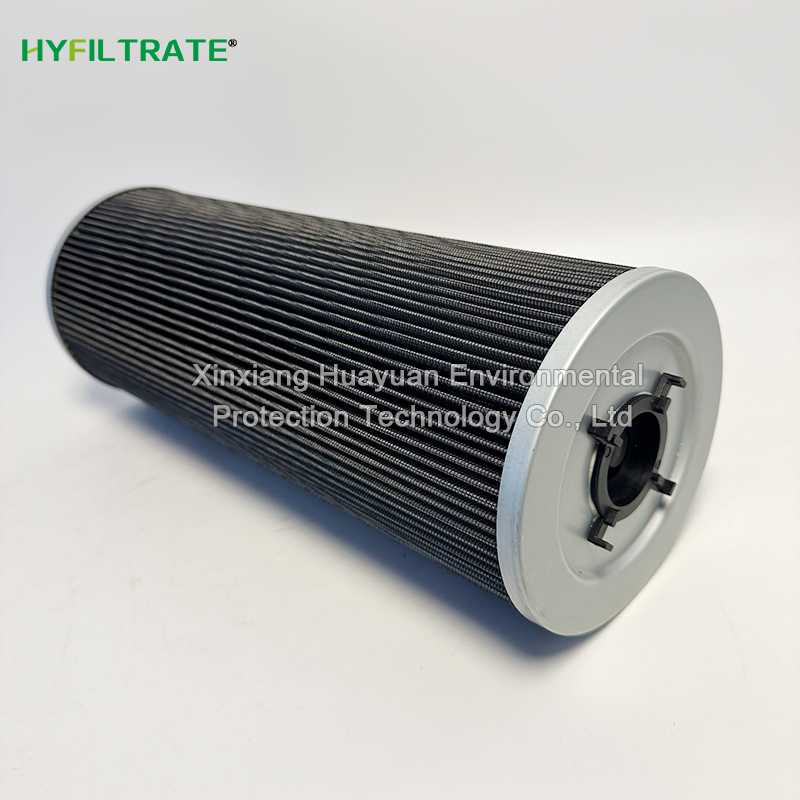

Replace Rexroth R928046172 20 750G100-SOO-6-M hydraulic oil filter element

Replacing Rexroth R928046172 20 750G100-SOO-6-M Hydraulic oil filter element, multi-layer stainless steel woven filter screen with low flow resistance can block large particle solid pollutants in the oil circuit, protect downstream high-Precision filter elements, and extend the service life of precision filter element. The filter screen can be reused after processing, disassembly and cleaning, reducing long-term operating costs. The double-layer metal casing structure has excellent strength and can adapt to load fluctuations in working conditions. The sealing structure is tight, reducing medium bypass leakage, suitable for continuous and uninterrupted operation, providing pre protection for the hydraulic circuit, and stably maintaining the cleanliness level of the oil foundation.

Applicable locations:

Energy field: Pre coarse filtration unit for hydraulic system of wind turbine generator set

Metallurgical industry: hydraulic circulation circuit pre filtration device for hot rolling and continuous casting equipment

Construction machinery: Shield tunneling, mining heavy machinery hydraulic pipeline protection and filtration

Intelligent manufacturing: Large hydraulic power station, die-casting unit oil circuit coarse filtration

Other scenarios include industrial lubrication pipelines and pre protection units for mobile hydraulic equipment

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): 20.750G25-S00-6-M, 20.750H10-S00-6-M

Tip: There are differences in filter materials and filtration accuracy, and they cannot be interchanged at will.

2) Alternative model: RX20750G100, with consistent external dimensions, structural parameters, and filtering indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; The Metal Filter can be washed and cleaned regularly; Investigate the source of system pollution if the pressure difference continues to be high.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

20.750G100-S00-6-M(R928046172)、20.750G40-S00-6-M、20.750H6-S00-6-M、20.750H10-S00-6-M、20.750H25-S00-6-M

R928046170、R928046171、R928046173、R928046174、20.750G06-S00-6-M

20.750G16-S00-6-M、10.750G100-S00-6-M、25.750G100-S00-6-M、20.630G100-S00-6-M、20.1000G100-S00-6-M
