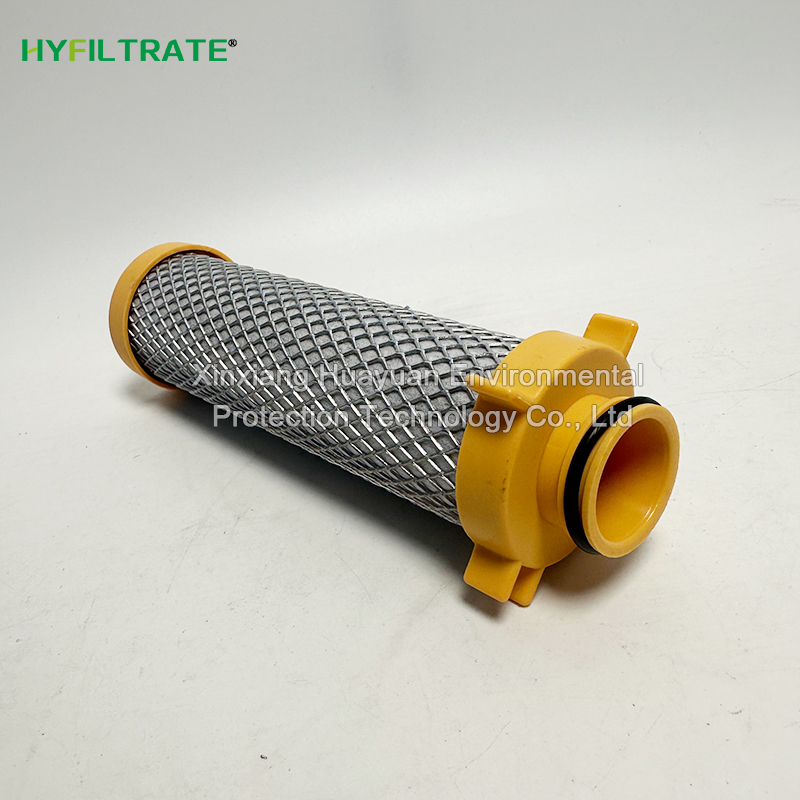

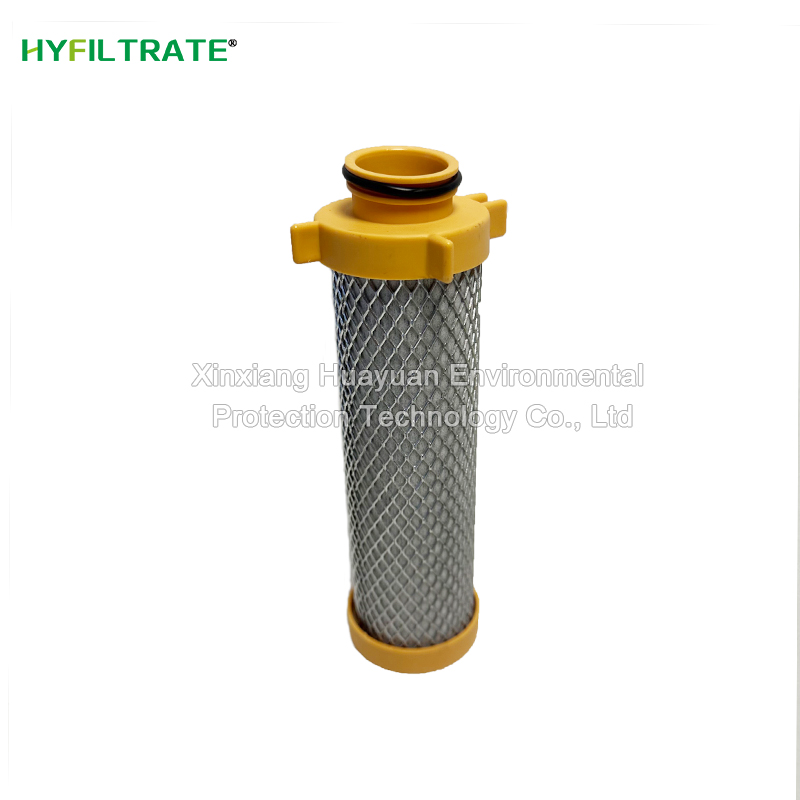

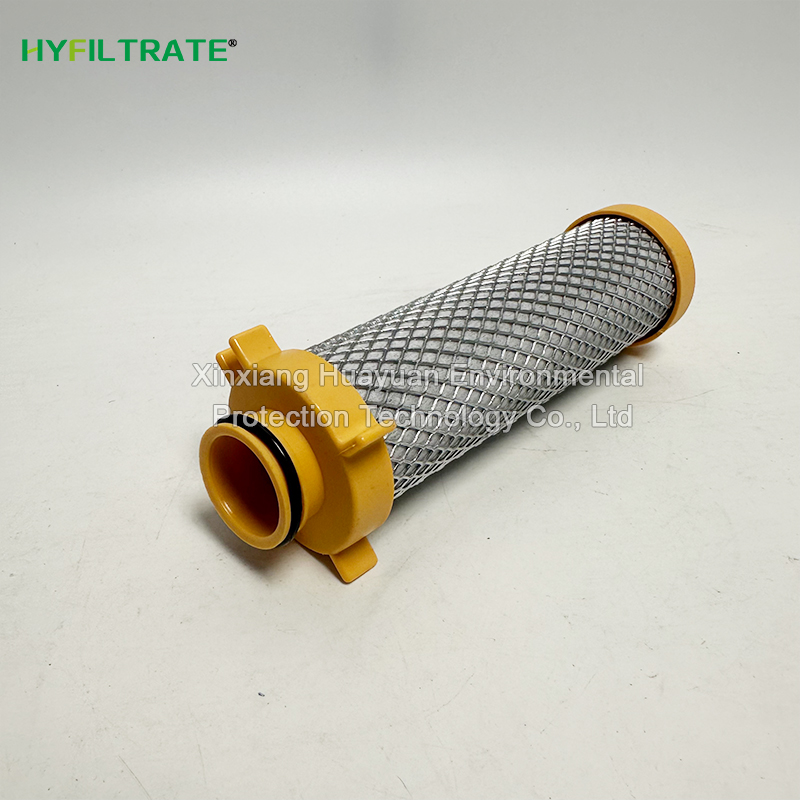

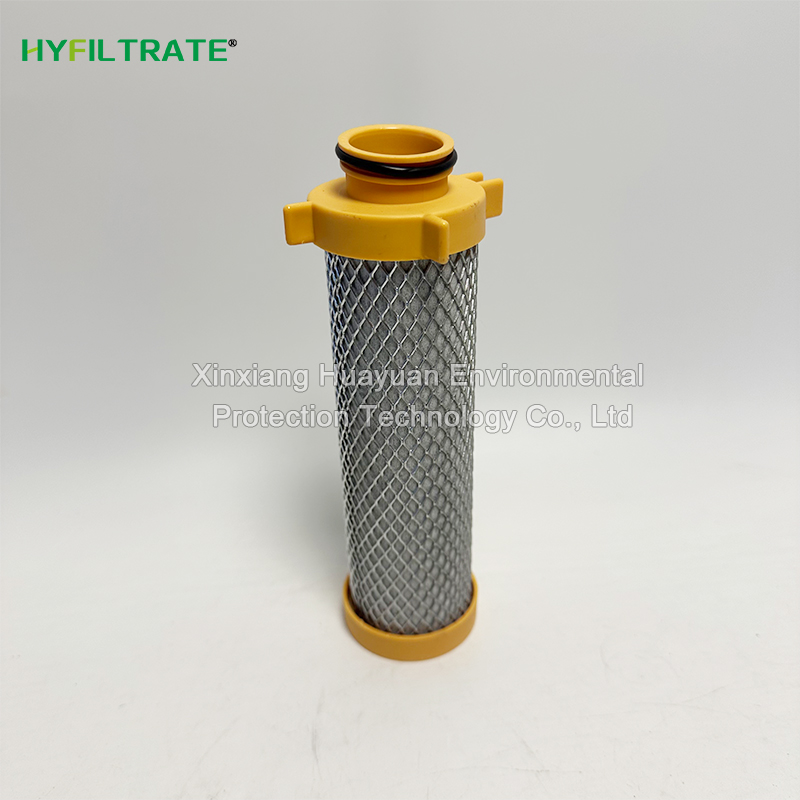

Replacing the Parker E020-AC air compressor filter element, it relies on activat
Model: E020-AC
Brand: HYFILTRATE
Filtration accuracy: 0.01μm
Size: standard size
Replacing the Parker E020-AC Air Compressor Filter element, it relies on activated carbon physical adsorption to thoroughly capture oil, gas, and compressed air odors, meeting the highest standards for food, medicine, high-purity spraying, and laboratory gas. And the front glass fiber first intercepts residual condensed water and liquid oil stains to prevent moisture from infiltrating the activated carbon and causing premature failure, thereby extending the service life of the filter element.
Replace Parker E020-AC air compressor filter element
Rated ventilation rate (7 bar, room temperature 20 ℃): 2.0 m ³/min (120 m ³/h)
Pressure range: working pressure 1-16 bar
Working temperature: 2 ℃~30 ℃ (the optimal adsorption range for activated carbon, the higher the temperature, the greater the decrease in adsorption efficiency)
Pressure difference reference: The initial pressure difference is very low; Activated carbon saturation has no fixed pressure difference standard, and if oil odor/vapor appears in the detected gas, it must be replaced
Sealing material: Standard NBR nitrile rubber
Filter structure: Front fiberglass pre filtration layer+columnar particle activated carbon adsorption layer, double-layer composite structure
