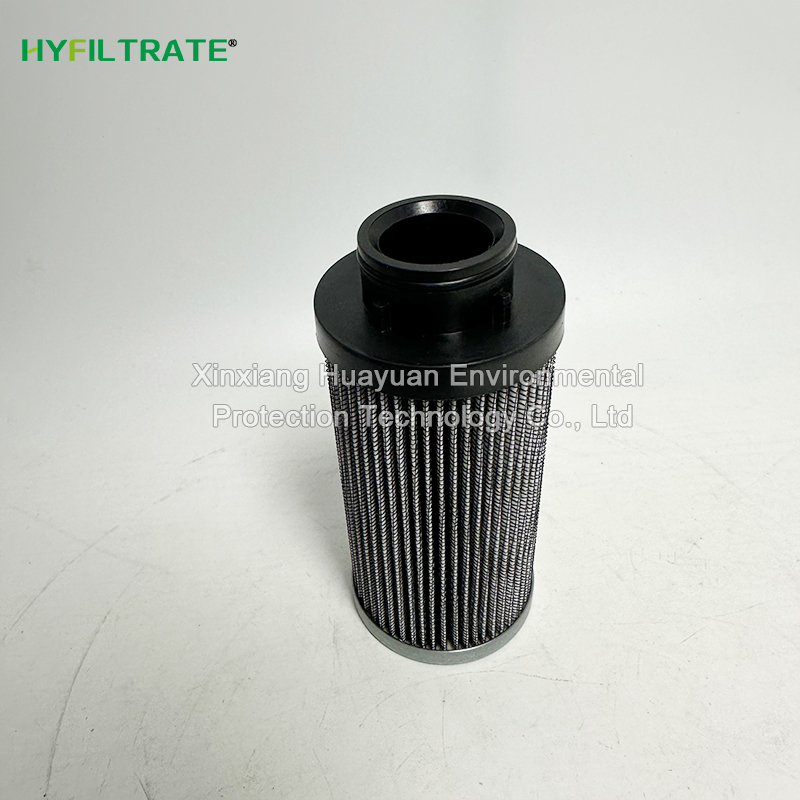

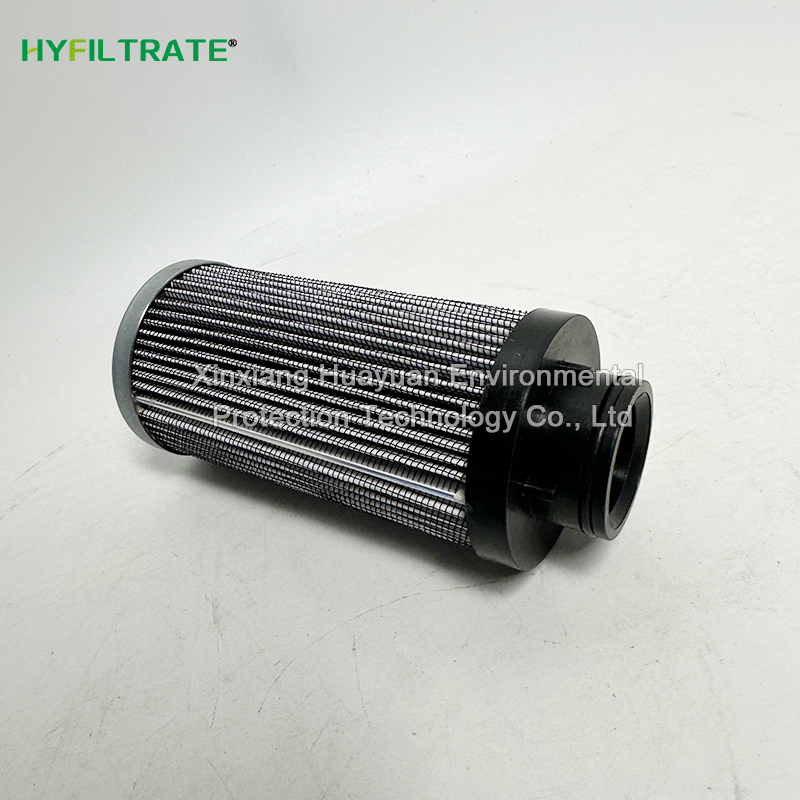

Replace Parker G01281Q hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replace Parker G01281Q Hydraulic oil filter element adopts micro glass fiber deep layer filter material, with a precision of 10 μ m, which can efficiently intercept metal debris, oxidized sludge and hard particles in the oil, continuously ensure the cleanliness of high-pressure hydraulic system oil, effectively protect precision components such as servo valves and plunger pumps, and reduce the risk of equipment wear and failure. It is suitable for high pressure conditions of 414 bar, and the reinforced metal frame can withstand pressure pulsation and cold start impact. The filter layer is not easily collapsed or damaged; The high-density folding structure has sufficient dirt holding capacity, with a smooth increase in pressure difference and a longer service life. The standard dual material seal is compatible with multiple types of industrial fluids, making disassembly and maintenance convenient. It is widely used in high-pressure hydraulic circuits such as construction machinery and industrial hydraulic stations.

Applicable locations:

Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device

Metallurgical industry: High pressure hydraulic circulation circuit for hot rolling production lines and continuous casting equipment

Engineering equipment: shield tunneling equipment, main control oil circuit for mining heavy machinery

Intelligent Manufacturing: Hydraulic Workstation, Die Casting Unit, Heavy duty Press Hydraulic System

Other scenarios include mobile hydraulic equipment, industrial lubrication pipeline filtration units

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): G01280Q, G01282Q, G01283Q

Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.

2) Alternative model: PKG1281, with consistent external dimensions, structural parameters, and filtering indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

G01281Q、G01280Q、G01282Q、G01283Q、G01284Q

G01277Q、G01278Q、G01279Q、G01285Q、G01286Q

G02721Q、G02722Q、G02723Q、G02724Q、G02725Q

Technical data

Replace Parker G01281Q hydraulic oil filter element

Filter material: multi-layer gradient micro glass fiber deep filtration medium

Filtering accuracy: 10 μ m absolute accuracy, β ₁₀ ≥ 200

Particle interception efficiency: ≥ 99.5%

The filter material is treated with anti-static impregnation to reduce dust adsorption and blockage caused by oil static electricity

Working temperature range: -25 ℃~+120 ℃ (-13 ° F~250 ° F)

Compatible media: mineral anti-wear hydraulic oil, gear lubricating oil, water ethylene glycol refractory oil, phosphate ester EH fire-resistant and fire-resistant oil, high-temperature synthetic lubricating oil

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
