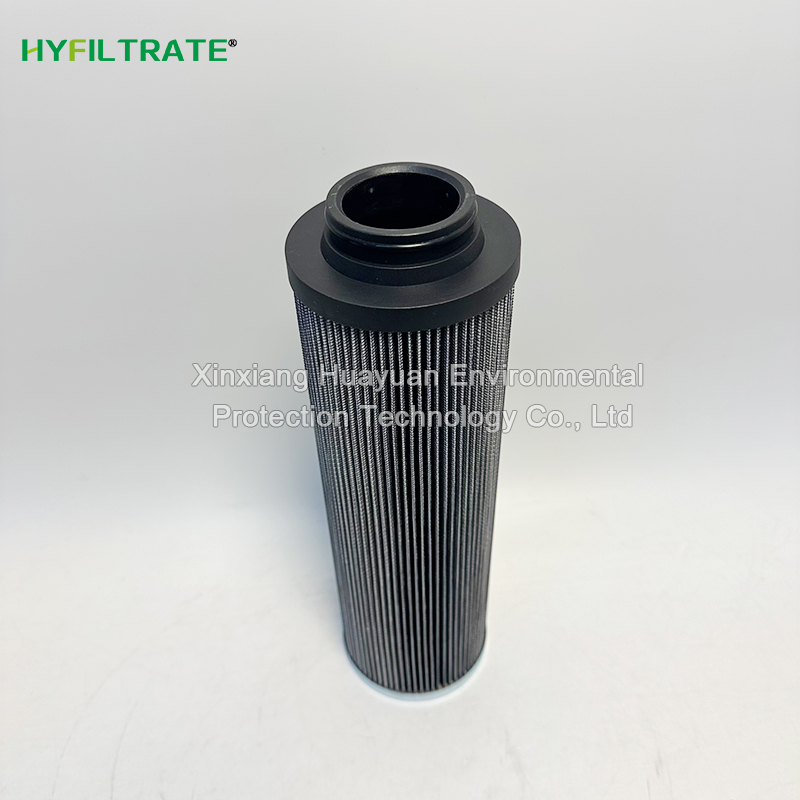

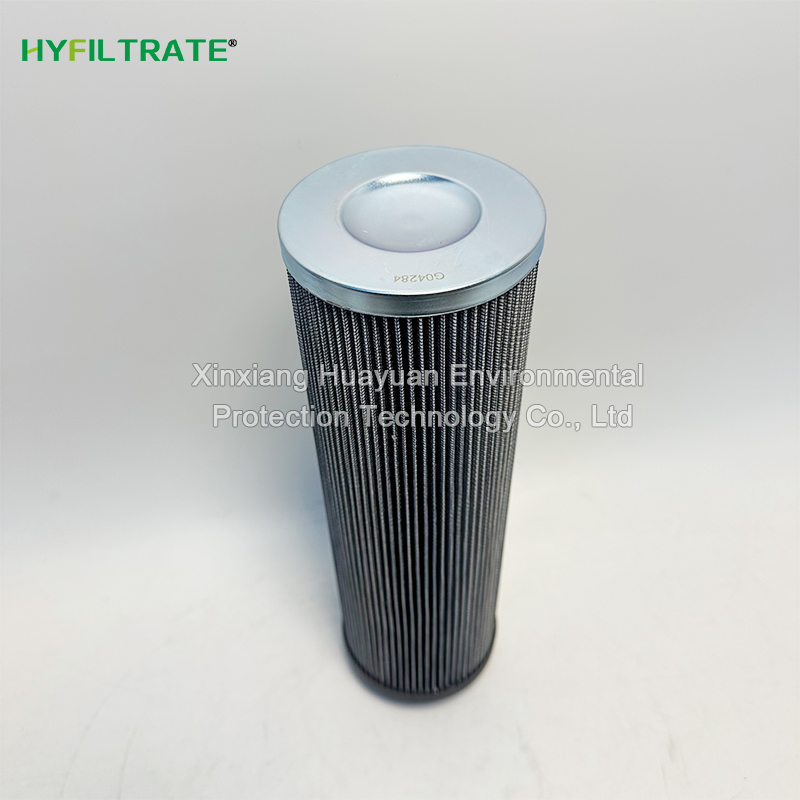

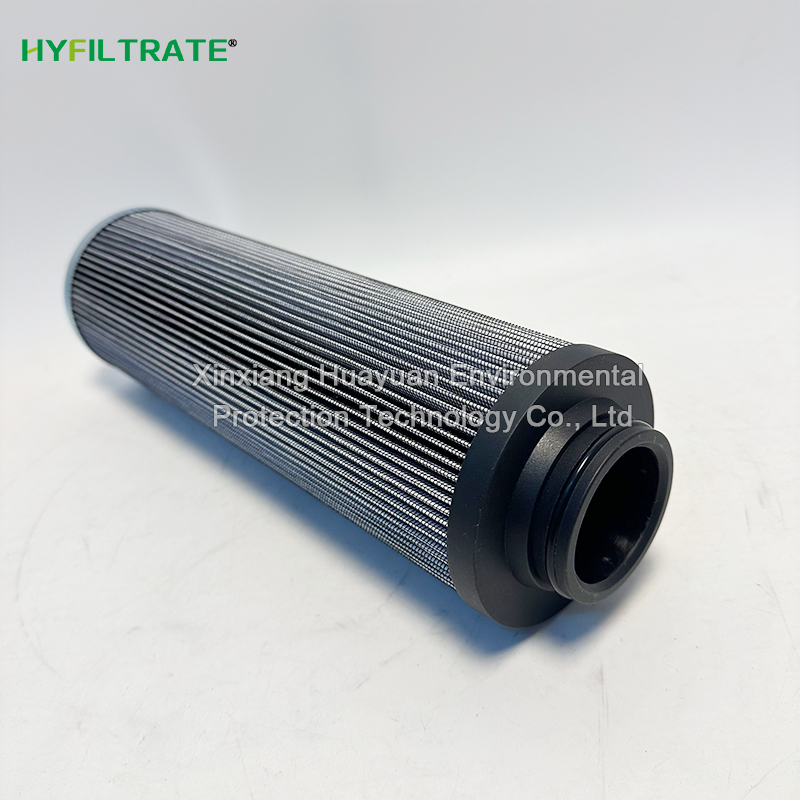

The replacement Parker G04284 hydraulic oil filter adopts a multi-layer gradient
Model: G04284
Filtration Accuracy: 10μm
Brand: Hyfiltrate
Material: fiberglass
Outer diameter: 93 mm
High: 321 mm
The replacement Parker G04284 Hydraulic oil filter adopts a multi-layer gradient composite glass fiber structure, with the outer layer intercepting large particles and the inner layer capturing micron level wear dust. The increase in pressure difference will not cause accuracy degradation; Its wrinkle optimized design provides a larger filtering area for the same volume, with a much larger pollutant holding capacity than ordinary domestic fiberglass filters. The replacement cycle is significantly extended, reducing downtime for maintenance; And it is not easy to shed fibers, which will not cause the servo valve core to get stuck, and is suitable for precision hydraulic systems
Replace Parker G04284 hydraulic oil filter element
Filtering accuracy: 10 μ m absolute accuracy
Filtration ratio: β ₁₀ ≥ 200, particle interception efficiency ≥ 99.5%
Pollution absorption characteristics: Multi layer wrinkled and layered interception, outer layer coarse filtration, inner layer fine filtration, with no loss of accuracy throughout the entire process, and a higher pollutant absorption capacity than ordinary single-layer fiberglass filter cartridges
Rated adaptive flow rate: 250 L/min
Working temperature range: -30 ℃ to+110 ℃
Suitable media: ordinary mineral hydraulic oil, gear lubricating oil; Compatible with water ethylene glycol and phosphate ester fire-resistant oil
