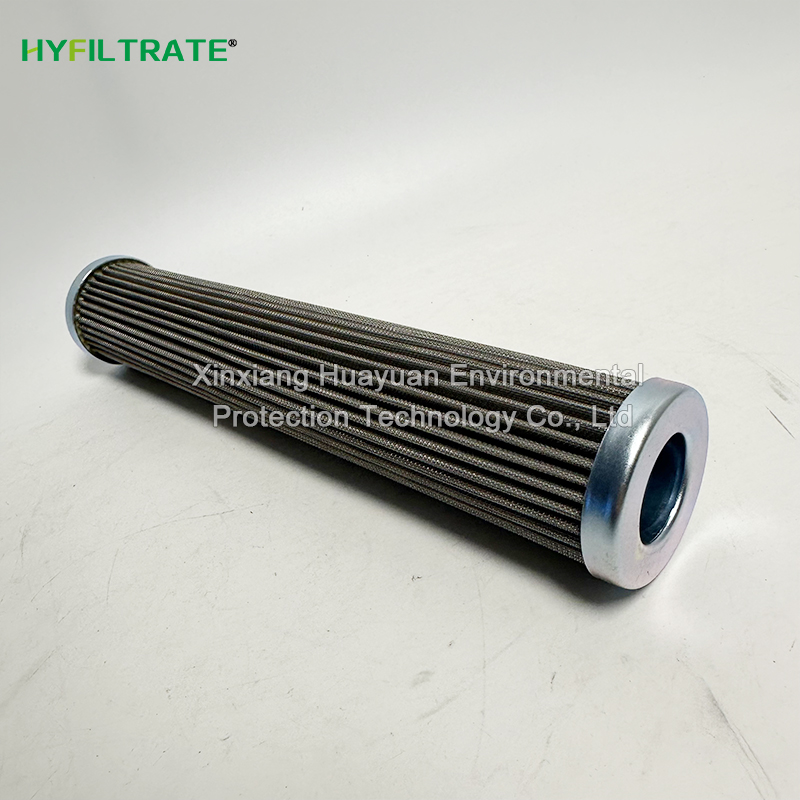

Replacing the MAHLE PI 8111 DRG 10 (7.768.090.3) hydraulic oil filter cartridge
Model: PI 8111 DRG 10
Filtration Accuracy: 10μm
Brand: HYFILTRATE
Material: stainless steel
Outer diameter: 48mm
High: 160mm
Replacing the MAHLE PI 8111 DRG 10 (7.768.090.3) Hydraulic oil filter cartridge does not contain fiberglass or filter paper materials, and will not cause fiber detachment, jamming of bearing shells, or small oil passages, resulting in higher lubrication system safety. And the Metal Filter mesh has high transparency, with extremely low back pressure in the return oil and lubrication oil circuits, which will not cause an increase in oil pump load or abnormal oil temperature.

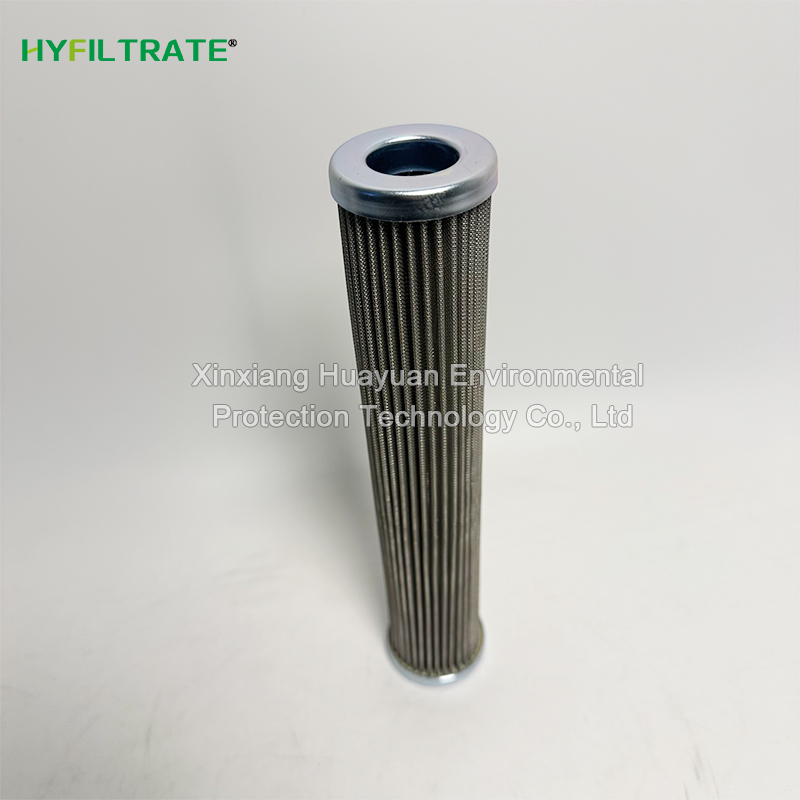

Replace MAHLE PI 8111 DRG 10 (7.768.090.3) hydraulic oil filter element
10 μ m stainless steel plain weave mesh, β ₁₀ ≥ 100, interception efficiency ≥ 99%;
Protect bearings, gears, and sliding bearings from solid particle erosion and wear.
Working temperature: -20 ℃ to+120 ℃
Standard sealing: NBR nitrile rubber; FKM fluororubber can be selected for long-term high temperature/special oil products
