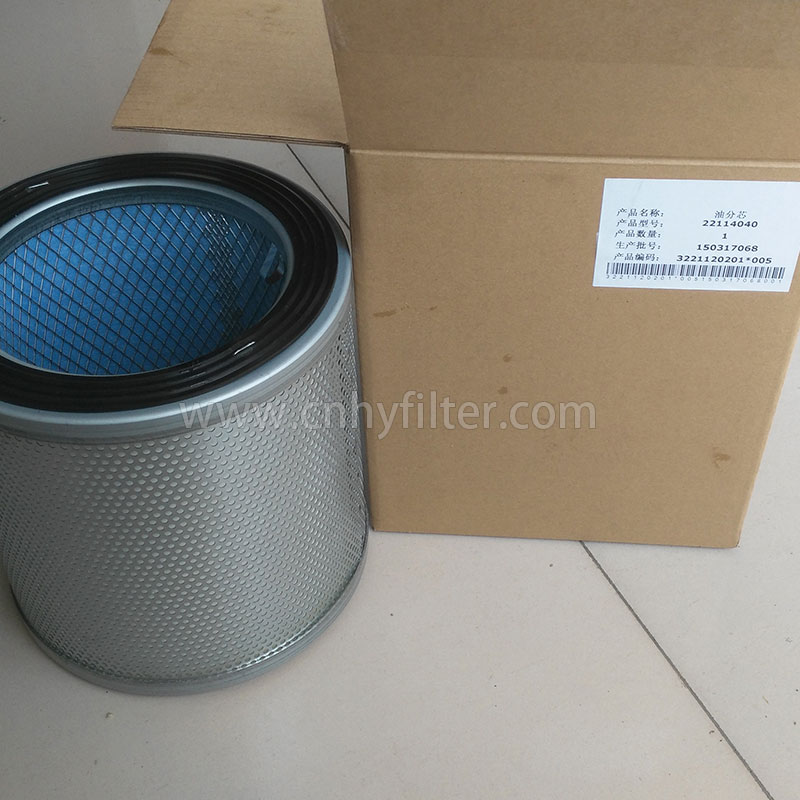

22114040 Replacement Ingersoll Rand Oil and Gas Separation Element

22114040 Replacement of Ingersoll Rand oil and gas Separation filter element is a key component that determines the quality of compressed air in an air compressor. High-quality oil and gas separation elements can not only ensure high-efficiency operation of the compressor, but also ensure a long service life of the Air Compressor Filter element. The compressed air from the compressor head entrains large and small oil droplets. Large oil droplets are easy to separate when passing through the oil and gas separation tank, while small oil droplets (suspended oil particles below 1um in diameter) must be filtered through the micron and glass fiber filter material layers of the oil and gas separation filter element. The diffusion of particles through the filter material is directly intercepted by the filter material and the mechanism of inertial collision condensation energy makes the suspended oil particles in the compressed air quickly condense into large oil droplets. Under the action of gravity, the oil gathers at the bottom of the oil core and passes through the bottom The inlet of the oil return pipe in the recess returns to the lubricating oil system of the machine head, so that the compressor can discharge more pure and oil-free compressed air.
