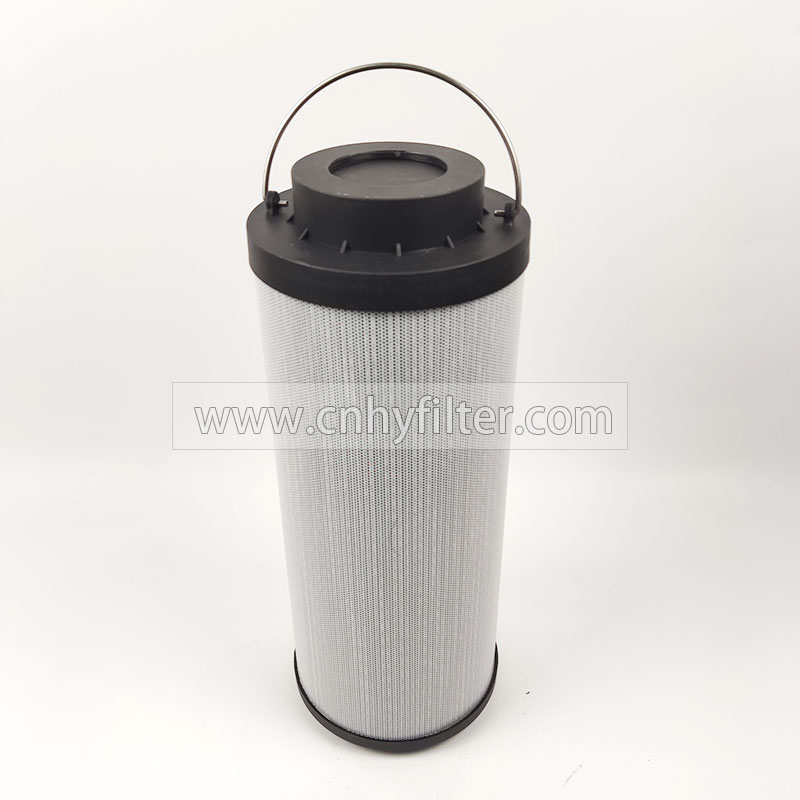

HYDAC hydraulic oil filter element 0950R005ON adopts high-quality plastic end cap, which is environmentally friendly and pollution-free. The filtration accuracy of the filter element is 5 microns. The
Model: 0950R005ON
Filtration Accuracy: 5 microns
Brand: HYFILTER
Material: Glass fibre
Outer diameter: 143mm
High: 363mm
HYDAC Hydraulic oil filter element 0950R005ON adopts high-quality plastic end cap, which is environmentally friendly and pollution-free. The filtration accuracy of the filter element is 5 microns. The glass fiber filter material can meet various filtration accuracy requirements, and has the advantages of large dirt holding capacity and high filtration efficiency. The replacement of HYDAC hydraulic oil filter elements can effectively alleviate the mechanical wear and oil deterioration of hydraulic oil products caused by impurity pollution, and prolong the service life of hydraulic oil products.
ISO2491 filter element - crack resistance test
ISO2492 Filter Elements - Structural Integrity Test
ISO2493 filter element - material and liquid compatibility test
ISO3723 filter element - end load test method
ISO3724 Filter Elements - Determination of Fatigue Properties of Filter Elements
ISO3968 Filter elements - Determination of differential pressure flow characteristics
Model: 0950R005ON
Filter material: glass fiber
Outer diameter: 143mm
Inner diameter: 96mm
Length: 363mm
Working pressure: 21bar~210bar
Sealing material: Nitrile rubber ring, fluorine rubber ring
Working medium: general hydraulic oil
Working temperature: -10～+100℃
Whether to support OEM: Yes
Manufacturer: Xinxiang Huayuan Environmental Protection Technology Co., Ltd.
