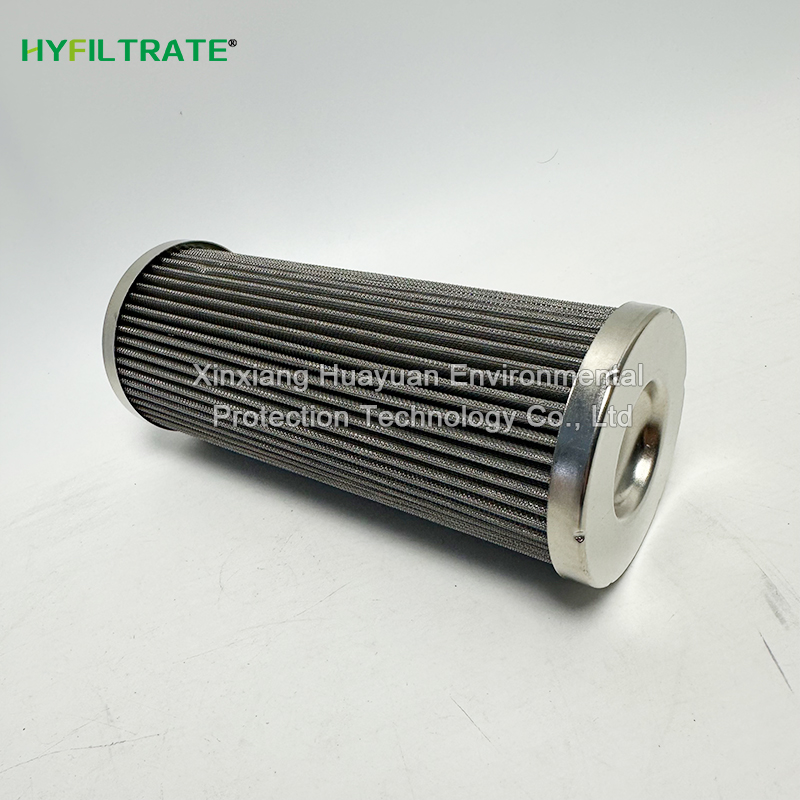

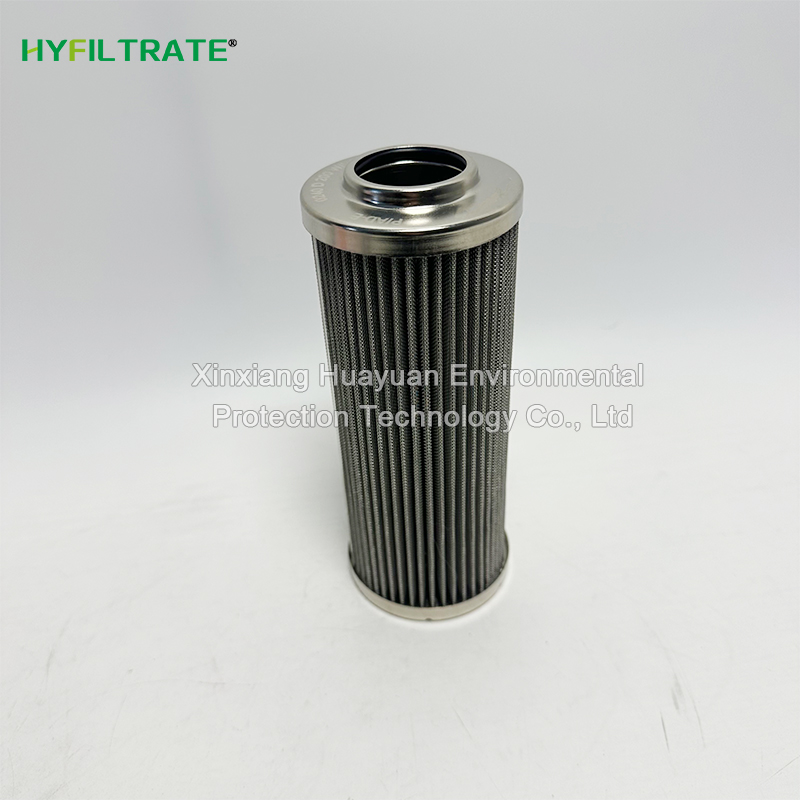

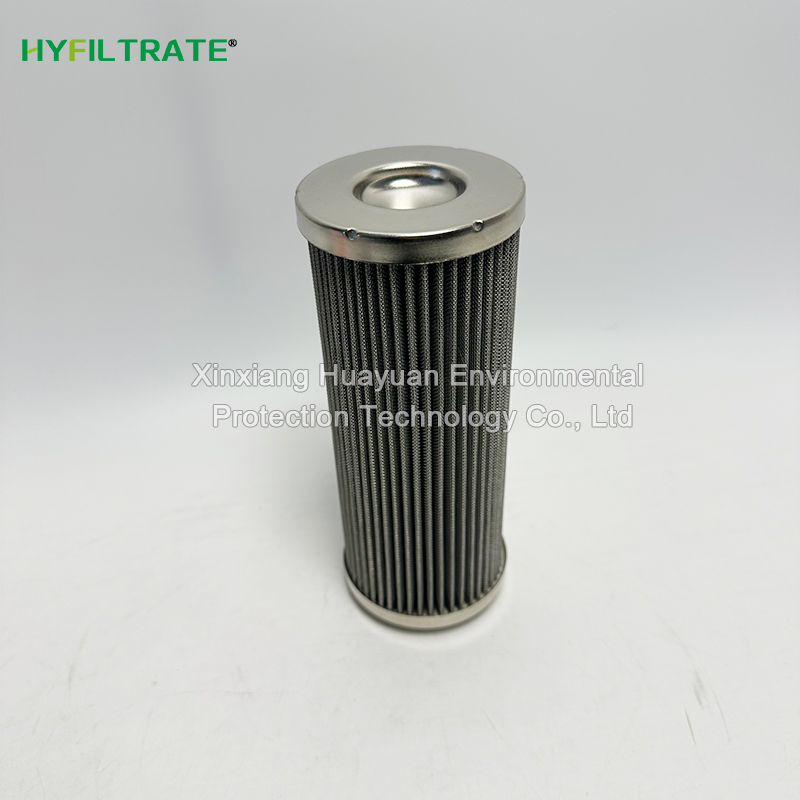

Replace HYDAC 1262426 0240 D 200 W/HC/- W hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing HYDAC 1262426 0240 D 200 W/HC/- W Hydraulic oil filter element can effectively block large particle impurities, provide pre protection for high-Precision filter elements at the back end, and reduce downstream filter element load. The filter material can be cleaned and reused multiple times, reducing long-term operation and maintenance costs. The double-layer metal casing structure has sufficient rigidity and is not easily deformed or failed under pressure fluctuations. The sealing end face fits tightly, reducing the problem of medium bypass. The overall structure is compact, suitable for various pipeline installation spaces, continuously ensuring the cleanliness of the oil circuit foundation, and reducing abnormal wear of the pump body and valve components.

Applicable locations:

Mining machinery field: pre protection unit for hydraulic pipelines of comprehensive mining equipment and excavation machinery

Metallurgical equipment: rolling mill unit, extrusion equipment, oil circuit coarse filtration device

Port equipment: lifting machinery, transfer equipment, hydraulic system protection and filtration

Energy industry: Rough purification unit for hydraulic drive circuit of wind turbines

Other scenarios: Large hydraulic power stations, engineering machinery main control oil circuit pre filtration

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): 0240 D 100 W/HC, 0240 D 400 W/HC

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: HD0240D200WHC, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Regularly clean the accumulated impurities on the Metal Filter screen; Frequent increase in pressure difference requires investigation of internal pollution sources in the system.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

0240 D 200 W/HC /-W、0240 D 100 W/HC、0240 D 400 W/HC、0240 D 050 W/HC、0240 D 025 W/HC

0160 D 200 W/HC、0330 D 200 W/HC、0240 D 200 BH/HC、0240 D 200 W/HC/-V、0240 D 200 W/HC/-B

0660 D 200 W/HC、0060 D 200 W/HC、0240 D 160 W/HC、0240 D 060 W/HC、0240 D 200 W/HC/-S

Technical data

Replace HYDAC 1262426 0240 D 200 W/HC/- W hydraulic oil filter element

Product type: Hydraulic system pressure pipeline coarse filter element

Filter material configuration: multi-layer stainless steel woven metal filter screen, fluid flow direction from outside to inside

Filtering accuracy: 200 μ m, intercepting welding slag, block debris, and large particle size hard pollutants

Allowable maximum pressure difference: 30bar, capable of withstanding periodic pressure fluctuations in the pipeline

Sealing material: NBR nitrile rubber sealing ring, suitable for various hydraulic transmission media

Working temperature range: -30 ℃ to+110 ℃

Supporting structure: Steel punched inner and outer casing, stable filter layer, resistant to liquid flow impact

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
