Replace Atlas Copco 9097 5072 92 air compressor precision filter element

Description:: Replacing Atlas Copco 9097 5072 92 air compressor precision filter element with

Share With:

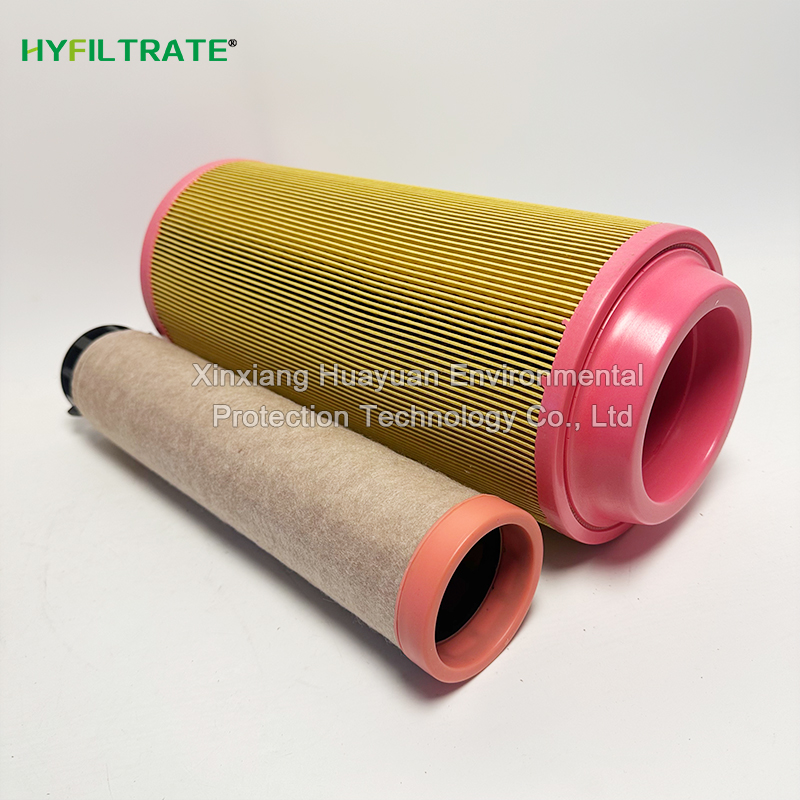

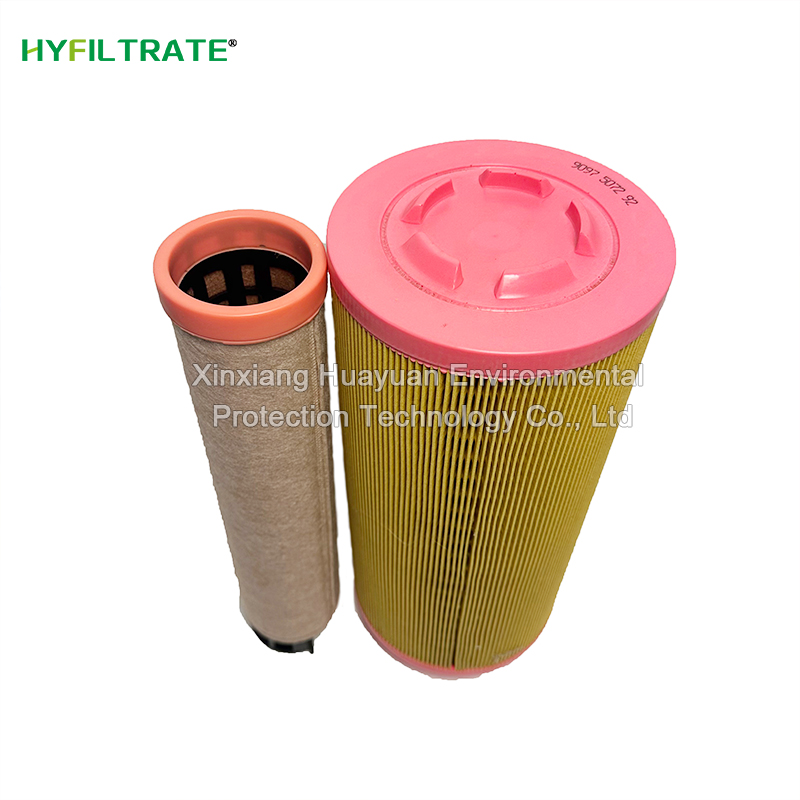

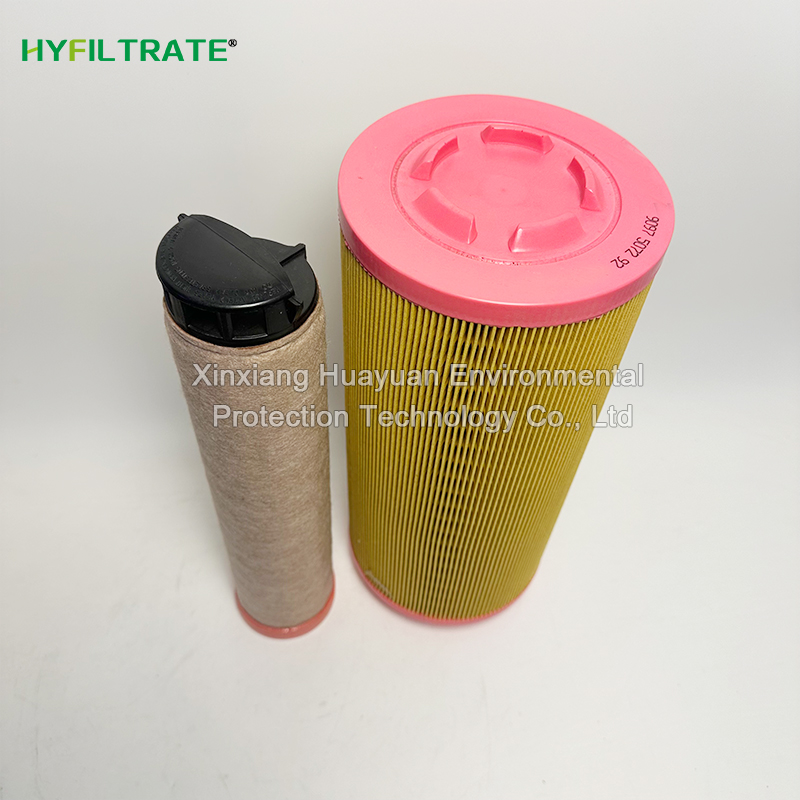

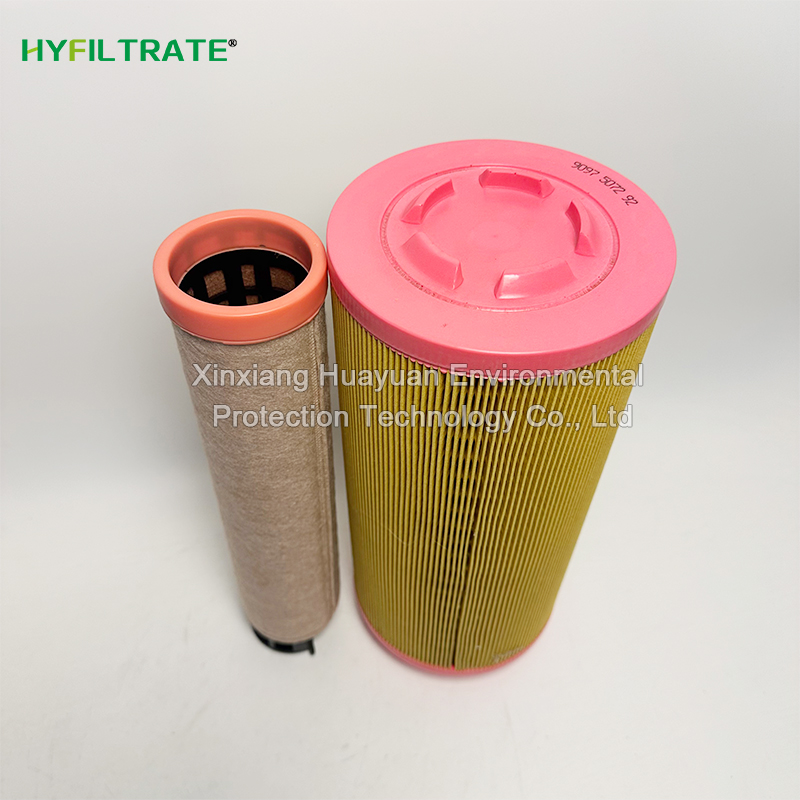

Replacing Atlas Copco 9097 5072 92 air compressor Precision filter element with multi-layer structure, the outer layer intercepts pipeline rust and solid dust; The inner layer of fiberglass aggregates small oil and water mist, forming large droplets that settle and are discharged by their own weight. Protect the backend dryer, pneumatic cylinder, solenoid valve, spraying equipment, and laser gas components to prevent oil and water accumulation from corroding pipelines and causing product defects. The original fiberglass is treated without silicon and can be used in spraying, food, and precision instrument gas scenarios. And the stainless steel inner cylinder can withstand the impact of airflow pulsation, and the epoxy integrated edge sealing will not cause cracking of the filter material or gas short circuit; Equipped with an electrostatic discharge structure, it eliminates the accumulation of static electricity in high-speed airflow and avoids potential safety hazards caused by static electricity in pipelines.

Applicable locations:

Mining industry: open-pit drilling rig, mobile air compressor intake filtration

Engineering construction: Mobile screw air compressor for road construction and infrastructure construction sites

Quarry, sand and gravel production line power gas source equipment

Municipal emergency repair mobile compressed air power unit

Air compressor system for field exploration and tunnel construction in other scenarios

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

9097507292, 9097507392, 1621510700, 1621510600, 1630040799

2901043200, 1613740800, 1622087100, 1625752500, 2903752500

1092049842, 1638047900, 1830010992, 1624184402, 1624184404

Technical data

Replace Atlas Copco 9097 5072 92 air compressor precision filter element

Filter material: high-density composite synthetic fiber; Airflow direction: from outside to inside

Filtration efficiency: ≥ 99.9% (4 μ m dust)

Sealing element: aging resistant nitrile rubber integrated seal

Working temperature: -30 ℃~+85 ℃

Supporting structure: Inner and outer rust resistant metal mesh, resistant to negative pressure deformation

Applicable medium: Air

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
