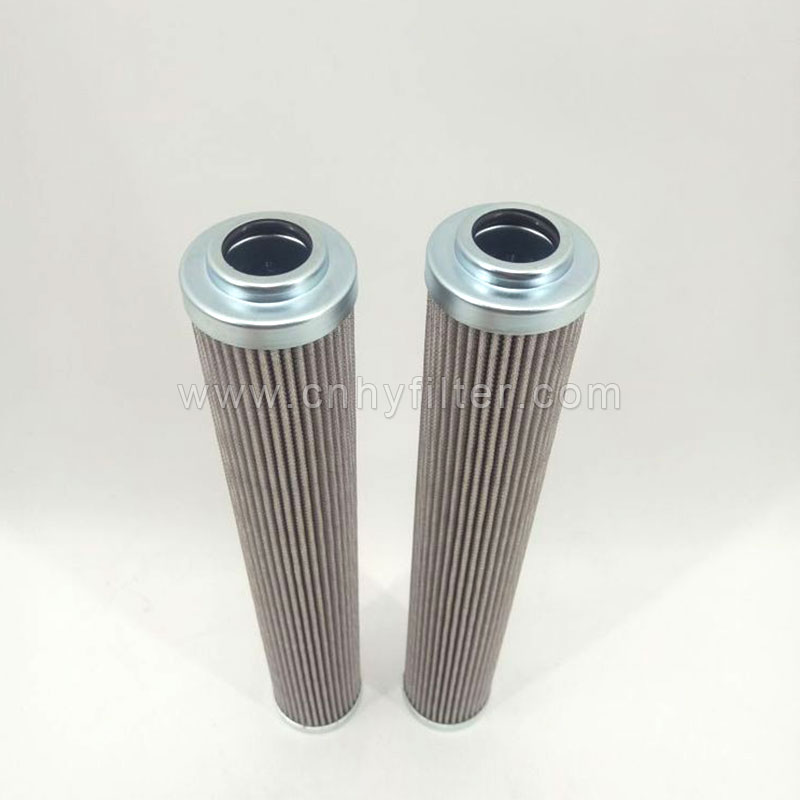

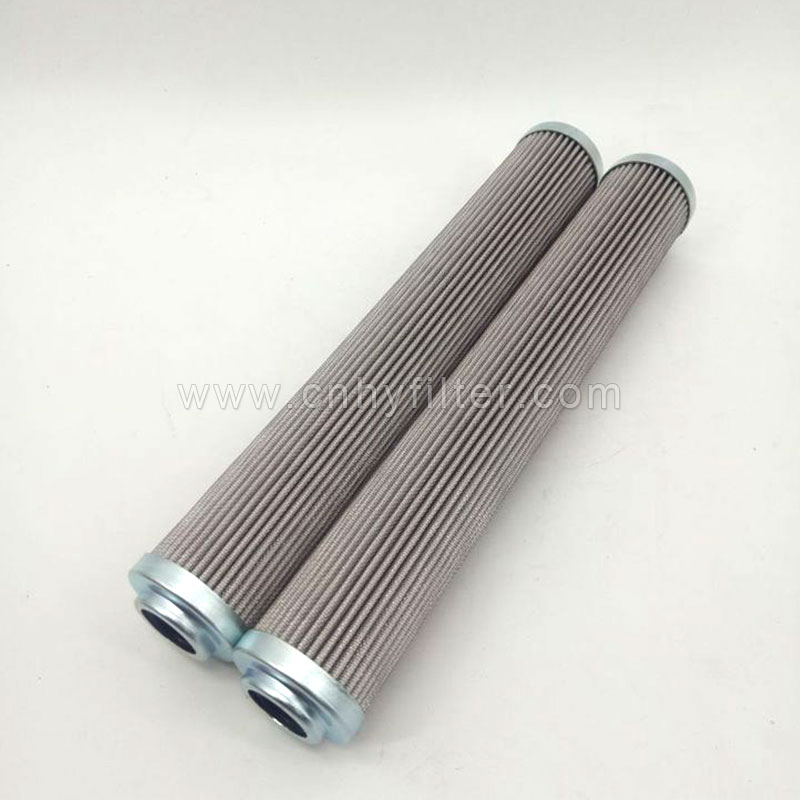

01.E360.25G.30.E.P Internormen oil filter is made of high-quality HV glass fiber and metal frame. It has very high filtration precision and filtration area, and can well filter hydraulic oil and lubricating oil. Usually the service cycle is 6-12 months replacement.
Our advantage
(1) It is convenient to customize the specifications. As long as you provide samples, models, and pictures, we can make them for you.
(2) What we do is not only the brand but also the quality. As long as it is the same price, we will provide you with better quality.
(3) Adhere to the principle of customer interests first, as long as it is the same quality, we will provide you with a more favorable price.
(4) Product packaging, according to your needs.
Internormen filter element:
314530 01.E 360.3VG.30.E.P.-
300229 01.E 360.3VG.HR.E.P.-
301952 01.E 360.6VG.30.E.P.-
300243 01.E 360.6VG.HR.E.P.-
300231 01.E 360.10VG.30.E.P.-
300232 01.E 360.10VG.HR.E.P.-
300705 01.E 360.16VG.30.E.P.-
303093 01.E 360.16VG.HR.E.P.-
300702 01.E 360.25VG.30.E.P.-
300235 01.E 360.25VG.HR.E.P.-
300237 01.E 360.25G.30.E.P.-
300238 01.E 360.25G.HR.E.P.-
300240 01.E 360.40G.30.E.P.-
300703 01.E 360.40G.HR.E.P.-
300704 01.E 360.80G.30.E.P.-
01.E 360.80G.HR.E.P.-
303092 01.E 360.130G.30.E.P.-
305267 01.E 360.130G.HR.E.P.-
Technical data
Technical parameter:
1. Filtration precision: 1~100um Filtration ratio: X≧100
2. Working pressure: (MAX) 21Mpa
3. Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol, etc.
4. Working temperature: -30℃~110℃
5. Filter material: glass fiber filter material used
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
7. Scope of application: It is used for oil pressure filtration of hydraulic and lubricating systems to filter out pollutants in the system and ensure the normal operation of the system.
